POSTAMATIC letter scale

Phila PA, U.S.A.
bruine lijn
Postamatic letter scale, U.S.A.
letter scale


This spring balance very strictly is a letter scale. The scale presents next to one another the rates for letters and for Air Mail. A division in ounces is not given. The range corresponds with 4 ounces. For letters this postal scale starts at 4 cents per ounce. The Air Mail rate starts at 7 cents. This letter scale was made in more colors: red, yellow, green and blue. According to Bill & Jan Berning, [see literature], also clear specimens were made. I still haven't seen one. Different postal rates on the Postamatic are found: 3 cents (1932-1958), 4 cents (1958-1963), 5 cents (1963-1968). A specimen from 1968, with a starting rate of 6c, doesn't present this rate on the scale itself. The postal rates are glued into the lid of the box of the scale. Berning states also that specimens exist with a 2 cents first class rate(1919-1932), I still have not seen an example of this. On older specimens the abbreviation LTRS (Letters) is used. Specimens from 1958 and more recent, have the abbreviation 1ST (First Class).

Postamatic letter scale, U.S.A.
letter scale

inside of lid

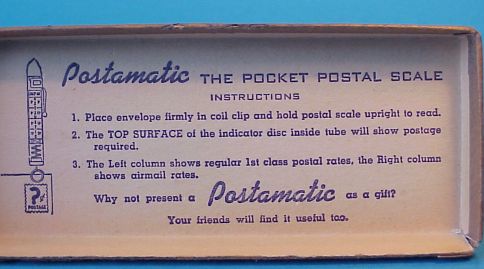

directions for use in the lid


Over the years several packings were applied. A few scales have a commercial print at the plastic wall. I still don't know whether or not a patent was granted to the design of the Postamatic. Below some more photos of this pure letter scale.

detail 1
box of the scale

detail 2
mark at lid

detail 3
scale in box

detail 4
weighing

detail 5
spring loaded at 4oz.

detail 6
clumsy clip

detail 7
letters 4c per oz.

detail 8
simple spring

detail 9
Pat.Pend. =
patent pending
detail 10
yellow, 3c per oz.

detail 11
red

detail 12
green

detail 13
red, 4c per oz.

detail 14
blue, 5c per oz.

detail 15
packing 1968
