E.W.
letter scale

maker: Ed. Widmann, France
bruine lijn

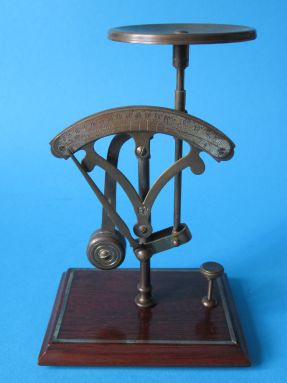

letter scale, maker E. Widmann
E. Widmann letter scale


This letter scale comes from France and was made by Ed. Widmann from Paris. According to a French source he worked in the period 1909 - 1931. His initials EW are on the scale. There is also DÉPOSÉ on the arm with the counterweight. This suggests a protection or registration. This graceful letter scale has a wooden base. The foot stands on two small solid metal cones and on one in height-adjustable leveling screw. The weighing range is 100 grams. The scale is subdivided per gram up to 30 grams. above 30 grams the subdivision is per five grams up to 60 grams. Above 60 grams, the subdivision is made per ten grams. The height of this letter scale is 155 millimeters. The rectangular wooden base has a beautiful inlaid brass strip. There are many variants of E.W.'s pèse-lettres: on wooden base: round, and rectangular, on a metal base, on an elegant cloisonne inlaid base in metal and also in wood, on ornamental stone, and so on. They are also available with a greater weighing range of up to 350 grams.
Below are some more pictures of this letter scale.

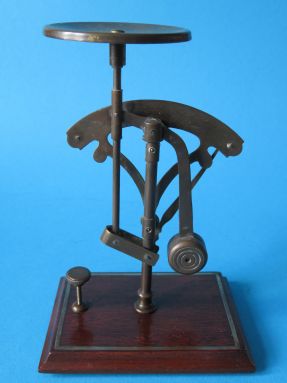

back of the scale
back of the scale

scale

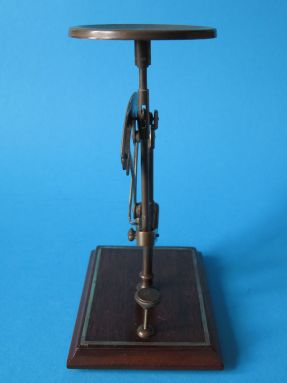

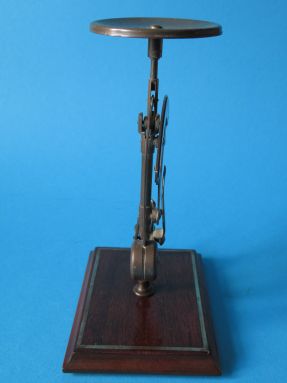

side view left

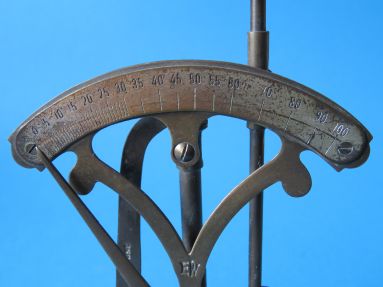

unloaded and loaded
animation: [move the pointer over the photo]

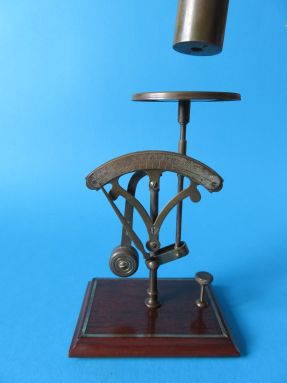

loaded with a weight of 100 grams

scale
side view right



detail 1

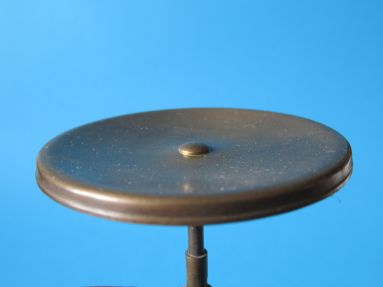

the round top plate

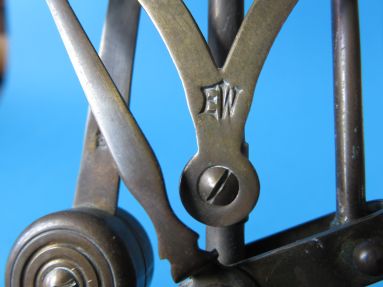

detail 2
the logo E.W.

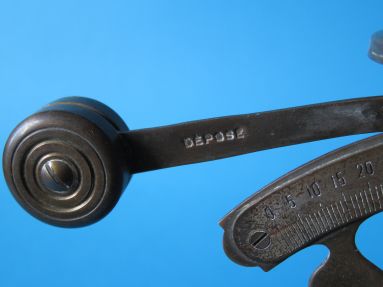

detail 3
the text DÉPOSÉ

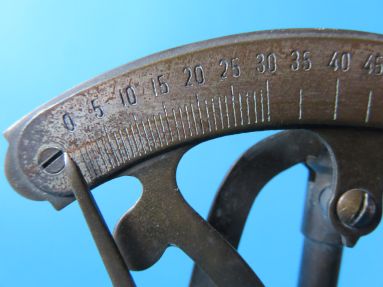

detail 4
up to 30 grams a stripe of measure per gram

detail 5
from 30 to 60 grams a stripe of measure per five grams

detail 6

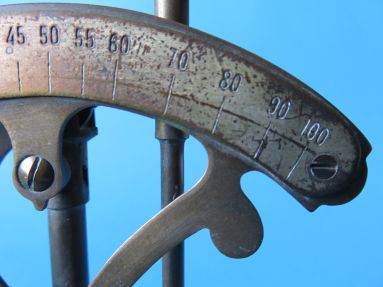

from 60 to 100 grams a stripe of measure per ten grams
detail 7
the brass ornamental striping well in the picture

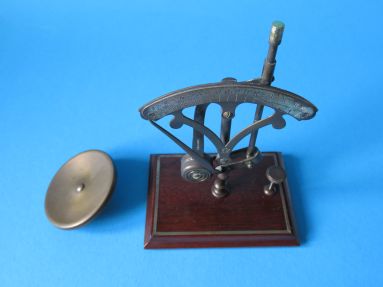

detail 8
the brass top plate can be removed

detail 9

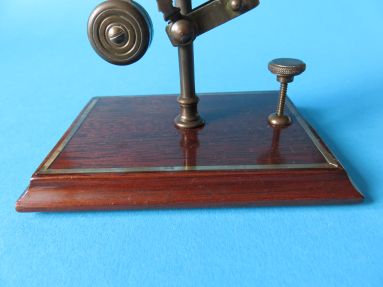

1 adjustable support and 2 fixed supports

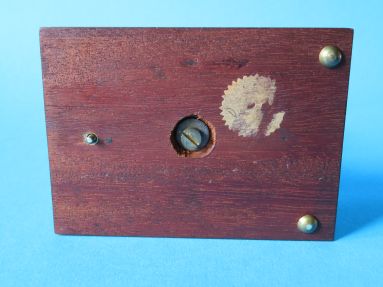

detail 7
the wooden scale base

detail 8
the counterweight with concentric circles

detail 9
the beautifully shaped adjusting screw
