letter scale and density balance
according to Dr. F. Mohr

maker: August Sauter, Ebingen, Württemberg, Germany
bruine lijn
weger, maker Sauter

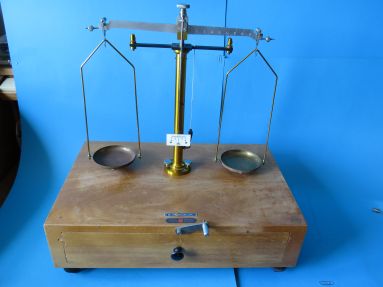

the balance in the free, active position


This scale is made by August Sauter, from Ebingen, Württemberg in Germany. It is an equal-arm balance for determining the specific gravity of solids and liquids to three decimals exactly. Some catalogs even claim up to four decimals. For use the scale is placed on the wooden box and for storage the parts fit in the drawer of this box. The weighing beam can be parked and released with the lever at the front of the box. The scale includes a set of weight hooks, a thermometer / immersion body according to Reimann, and a cylinder glass. there are also two suspension brackets with an fold-out cross for the loose brass trays for normal weighings. The scale has a lead suspended from a string for leveling. With the two adjustable feet at the front one levels the wooden box with the mounted scale. The Reimann immersion body is a gift from Mr. Rudi Keinath from the Ph.-Matth.-Hahn-Museum, Arbeiskreis Waagen & Gewichte, in Albstadt-Onstmettingen, Germany. I don't have the manual of this scale. Determination of the specific weight of solids and liquids with a balance according to G. Westphal is described in 1870. Friedrich Mohr did this already in 1832. This balance is named precision balance No. 674 in the August Sauter catalogs of the late 1940s, 1950, 1951, 1960 and 1962.


scale

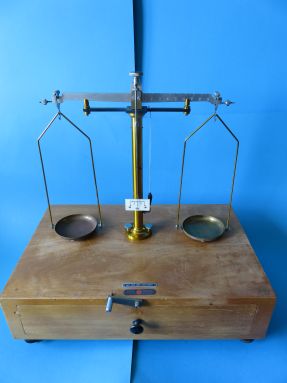

the scale in parked, rest position


With the suspension brackets and the brass trays the balance can be used for normal weighing, provided you have the necessary weights. These were not supplied with this Sauter balance as standard.
In the Dutch society quarterly magazine Meten & Wegen of September 2003, on pages 2920-2926 is an illuminating article by E.M. van der Ouderaa with the title: Twee balansen van Westphal (Dutch, translated: Two balances of Westphal). In this article instruments for measuring the specific mass of liquids are described, alongside the pycnometer, the aerometer, some hydrometers, the balance of Mohr and the balance of Westphal are described as well and discussed in detail.
Below some more pictures of the equal-arm balance of Sauter, primarily intended to determine the density of solid and liquid substances.

scale box
everything stored in the box, the handle
can also be removed

drawer with scale parts
the scale parts stored in the drawer


scale
2 adjustable feet and the fixed foot


weger
the adjustable feet and fixed
foot mounted

drawer
empty drawer with special storage spaces


scale parts
suspension and fold-outcross
for a weighing pan

detail 1
the weight hooks for the
density determination
detail 2
knife edge support

detail 3
in active freely movable position

detail 4
the smallest weight hooks


detail 5
this balance is adjusted at 20 degrees
Celsius (D.A.B. VI)

detail 6
wire with lead to help leveling
the scale

detail 7
logo of August Sauter, Ebingen




detail 8
bolted plate with the restriction:
NIET VOOR HANDELSDOELEINDEN
= NOT FOR COMMERCIAL PURPOSES
and the manufacturer's plate with the ASE-logo

detail 9
a vague ASE-logo is also on the
right corner on top of the box



detail 1
the immersion body according to Reimann sisplaces
5 grams and is also a thermometer. A gift received
from Rudi Keinath of the Ph.-Matth.-Hahn-Museum,
Arbeiskreis Waagen & Gewichte,
in Albstadt-Onstmettingen
detail 2

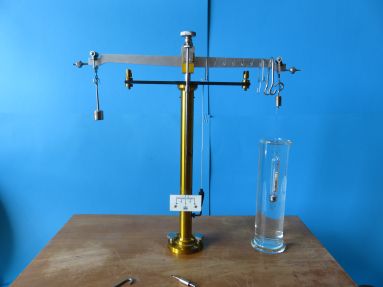

the mounted balance ready to determine a liquid density


detail 3
the thermometer side of the immersion body
a gift received from Rudi Keinath
