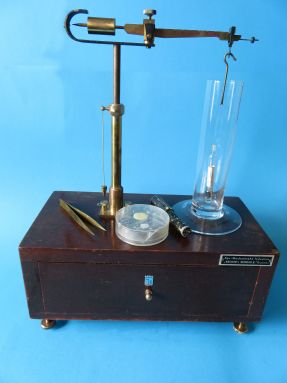

Westphal balance, maker Becker's Sons, Brummen | This balance comes from Fijn-Mechanische Industrie "Becker's Sons N.V." from Brummen, The Netherlands. This scale has the logo and brand name Beckson at the front of the drawer of the wooden storage box. This box also serves as the basis of the balance. its an unequal-arm balance for determining the specific gravity of liquids up to four decimals accurately. Becker's limits this to three decimals. The balance is mounted on top of the wooden box and can be stored in the drawer. The balance includes a set of weight hooks, a thermometer / immersion body according to Reimann, a pair of tweezers, and a cylinder glass. The scale has a lead suspended from a string for leveling. With the two adjustable feet at the front of the box the leveling is performed. The Reimann immersion body is calibrated and displaces 5 grams water. The immersion body also contains a thermometer. My balance is missing a manual. The determination of the specific weight of liquid substances with a balance according to G.Westphal was described in 1870. Friedrich Mohr already did this in 1832 and did it for liquids and solids. A density balance according to Mohr is described here. Balances according to the Westphal System have been supplied by many scales manufacturers for years. There are differences in implementation, the use of Archimedes' law remains the same: | Westphal balance, maker Becker's Sons, Brummen |
discussed in detail. At the end of the article there is a brief instructions for use for this Westphal balance from Fijn-Mechanische Industrie "Becker's Sons" - N.V. dated June 1964.
Below some more pictures of this Beckson density balance for liquids.
the pivot point is a knife-edge bearing |
the weighing load is hanging on a knife-edge bearing |
the counterweight on the short arm of the balance in equilibrium |
the immersion body hangs on the long arm of the balance | upright is fixed on the wooden box |
a fixed support leg in the middle back two adjustable support legs in front |
the Beckson logo | the maker's plate of Becker's Sons |
the scale parts stored in the drawer |
the empty drawer with storage spaces |
bottom with the three supports |
loose parts in plastic storage box |
the separate parts displayed |
the immersion body with storage case |
immersion body according to Reimann displaces 5cc |
immersion body also has a thermometer |
the non-original liquid cylinder positioned on the mahogany box |
