COLUMBUS
parcel scale 1 kilo / 6 kilo

maker: Philipp Jakob Maul, Hamburg, Germany
bruine lijn
parcel scale, maker Ph.J. Maul
parcel scale made by Ph.J. Maul

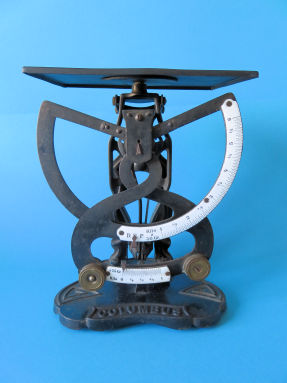

This parcel scale was made by Philipp Jakob Maul from Hamburg in Germany. This parcel scale is listed as No. 436 in the Maul catalog of 1912. This scale also appears in the 1913s export catalog. It is the second largest scale of Ph.J. Maul. The largest with the same gracefully cast foot was already presented here. At the bottom of this page is the catalog image of the 10 kilograms version. The weighing ranges of the parcel scale shown here are 1 and 6 kilograms. The model name COLUMBUS is cast in the scale base. The number 777 is on the bottom.
Below some more images of this Columbus parcel scale.

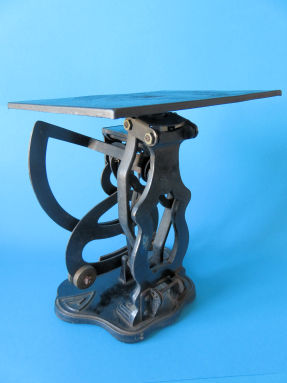

back of the parcel scale
back of the parcel scale

side view
side view


two different loads
animation:
[move pointer over the photo]
loaded with 3 or with 6 kilograms
side view
side view



detail 1
the parcel scale is 26 centimeters high

detail 2
two enamel measurement scales

detail 3
the scale up to 6 kilograms

detail 4
the model name Columbus in the cast iron base

detail 5
the 10 kilograms version in the 1912 catalog

detail 6
the bottom has three support points

bruine lijn
