N.B.
NARCISSE BRIAIS
letter balance

maker: Narcisse-Eugène Briais, Paris, France
bruine lijn

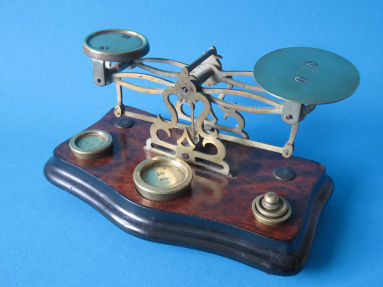

letter balance, maker Narcisse Briais
letter balance, made by Narcisse Briais, France


This is a pretty old letter scale from France. This version is probably from before 1862. With the weight of 2½ grams together with that of 5 grams, the French weight limit of 7½ grams for letter mail can be set on the balance. That weight limit was used in France until 1862. Only in postal traffic between France and Great Britain (from 1833) and between France and Prussia (from 1837) the rate per 7½ grams was used until 1875. The balance is a design of Narcisse-Eugène Briais from Paris in France. The NB logo of Narcisse Briais, is already on this letter scale. Narcisse Briais was a French instrument maker who produced letter scales and balances between 1859 and 1886. The N.B. logo was introduced from 1876 onwards. After 1886 G. Restorf took over the company and continued to apply the N.B. logo. In 1914 Restorf discontinued the company. After this M. Ducos used the logo N.B. on his letter scales in the period 1915-1926 and from 1927-1931 M. Guérin continued to apply the N.B. logo still on letter scales (source: Le Système métrique 1997-3, pp.1124).

back of the letter scale
back of the letter scale


From Narcisse Briais, or from his successors, letter scales have been shown already, see for example the photographic scale, the Loth letter scale, the herbs & powder scale, the déposé letter scale, the oldest Briais letter scale and also this letter scale.
Below some more images of this Briais letter scale.

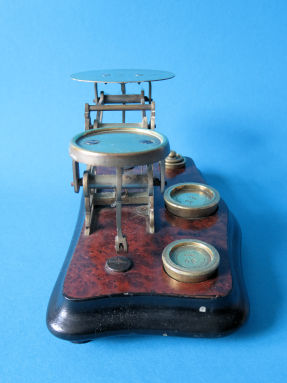

scale side view
side view

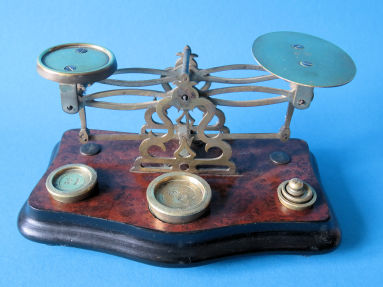

the letter balance
the Narcisse Briais balance for weighing letters

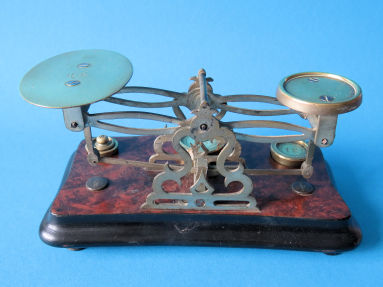

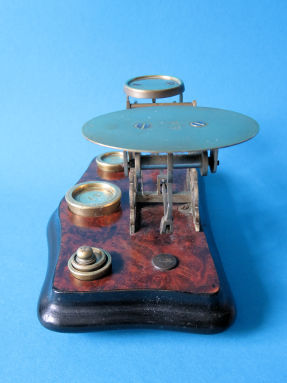

side view
side view

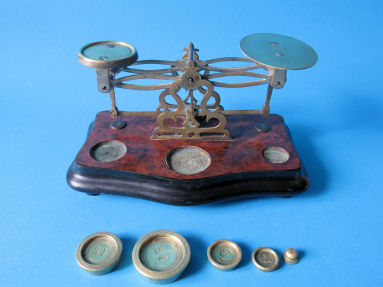

detail 1
the weights removed from the countersunk holes

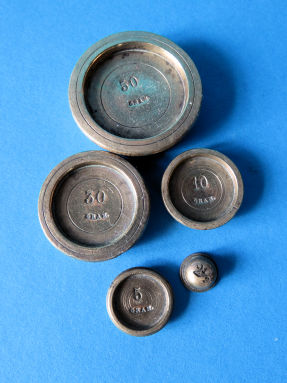

detail 2
50, 30, 10, 5, and 2½ grams

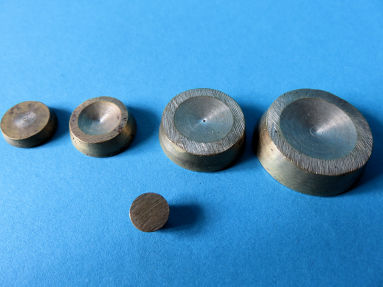

detail 3
the bottom of the brass weights

detail 4
the weights are nested

detail 5
the nested weights

detail 6
the special weight of 2½ grams

detail 7
the plateau for the weights

detail 8
the balances seen from above

detail 9
the logo N.B. of Narcisse Briais on the letter plate

bruine lijn
