letter scale

unknown maker, from the Netherlands or from Germany
bruine lijn
letter scale, unknown maker
letter scale


This is a letter scale on which no brand can be found. However, a VI mark has been filed on the bottom of the upright and at the bottom of the carrier of the brass letter plate. The model has been shown before, see for example this one Holsboer and also this letter scale from Becker & Buddingh. The weighing range of the letter scale shown here is somewhat larger, namely 250 grams. The chart has three divisions: per ten grams, per five grams and per gram, the latter from 0 to 150 grams. From 150 to 200 grams the scale is divided into two grams and finally from 200 to 250 grams the scale is again divided into five grams.
This letter scale is 30 centimeters high. The letter plate measures 10.5 by 10.5 centimeters.
Below some more pictures of this letter scale.

back of the scale
back of the letter scale

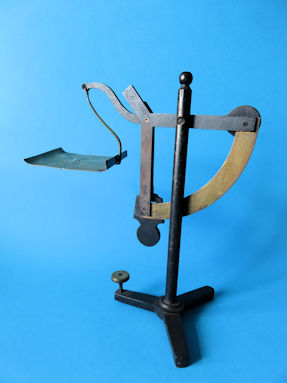

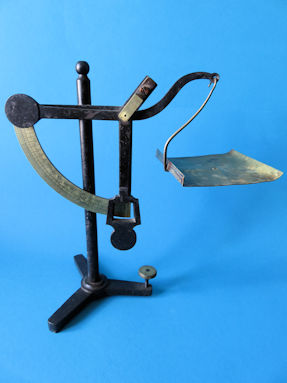

side view
side view


two scale positions
animation: unloaded and loaded
with 100 grams
[move pointer over photo]
side view
side view

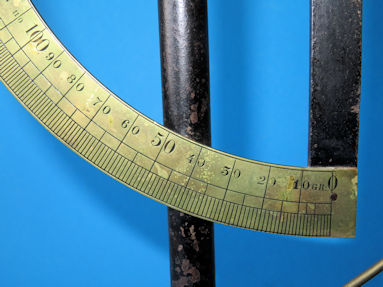

detail 1
three graduations up to 250 grams

detail 2
the brass scale

detail 3
easy to read scale

detail 4
loaded with 50 grams

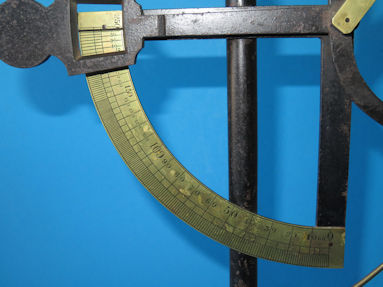

detail 5
loaded with 100 grams

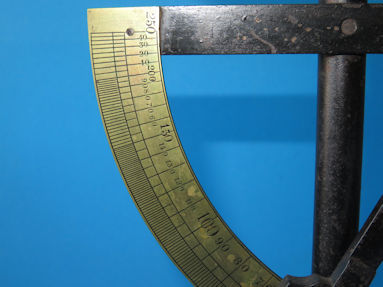

detail 6
maximum load up to 250 grams

detail 7
reading window with reading wire

detail 8
detached letter plate

detail 9
the zero adjustment screw

letter plate
top side of letter plate


letter plate
bottom of letter plate
