letter scale on pedestal made of bois durci | The base of the letter scale is special. It is Bois Durci, that is translated: hardened wood. Bois Durci is made from finely ground sawdust, i.e. from wood powder or wood flour, mixed with albumin as a binding agent. Albumin is a protein from blood plasma. That blood came from cattle from slaughterhouses in Paris. The mixture was heated in steel molds and compressed under high pressure. Then cooled quickly. The product thus made has a high density and is resistant to boiling water. Several types of wood are mentioned, for example ebony and rosewood. Some sources report the addition of dyes. As an alternative to albumin from blood, egg and gelatin are mentioned. On October 3, 1855, Charles-François Le Page, together with Talrich and Pi, obtained a patent for fifteen years with number 13898, entitled Fabrication de tous articles et objets en bois durci (Translated: Manufacture of all articles and items of hard wood). They were unable to set up series production of sufficient quality. They sold the patent to Alfred Latry in 1859, who was more successful. After 1870, the end of the original patent, more companies made Bois Durci products. Until 1926, when a fire destroyed the factory of the last producer André Hunebelle. | back of the letter scale |
and the maximum width is 11 centimeters. The range is 60 grams with a stripe per 5 grams. An indication for the unit of measure grams is missing on the dial.
Below some more images of this letter scale with the special foot of Bois Durci.

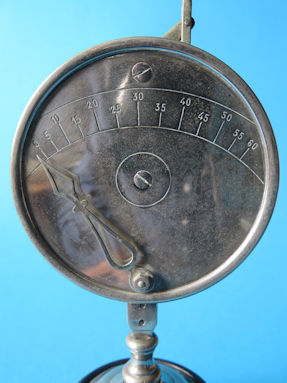

weighing range 60 grams subdivided per five grams |

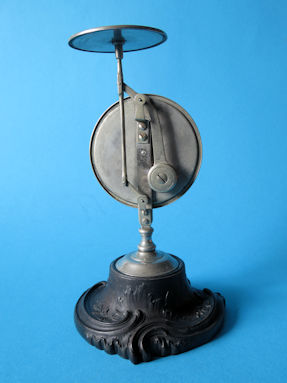

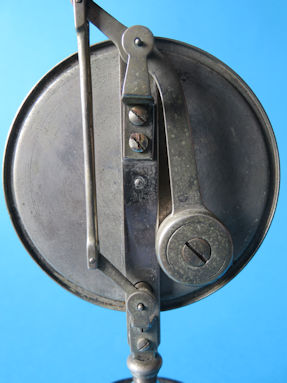

parallelogram mechanism and the counterweight | graceful lines and floral patterns on the scale base |
the top pivot |
a small part of the foot is missing in the center front |
the bottom pivot |
the scale foot without the letter scale mechanism |
the plate can easily be removed from the scale |

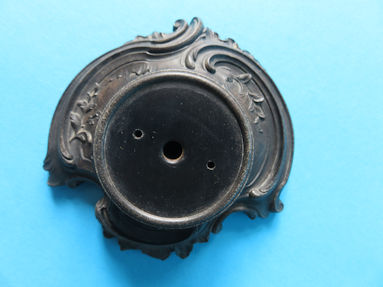

the bottom of the bois durci scale foot |

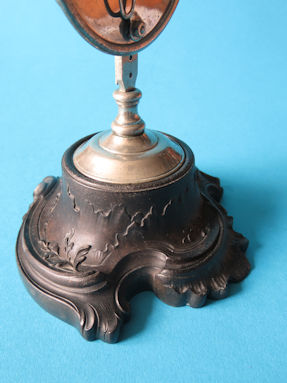

the bois durci foot seen from above |

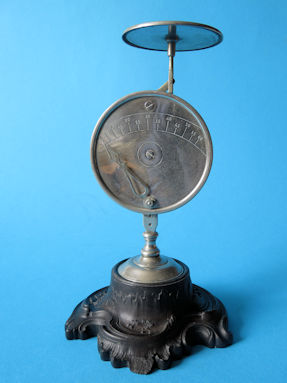

the letter scale on the bois durci foot |

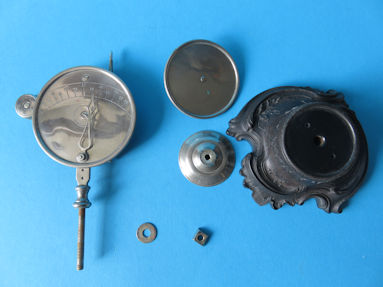

the letter scale disassembled from the bois durci foot |
