photographic balance
Eastman Studio Scale

maker: Eastman Kodak Co., Rochester, N.Y., U.S.A.
bruine lijn
photographic balance, maker Eastman Kodak

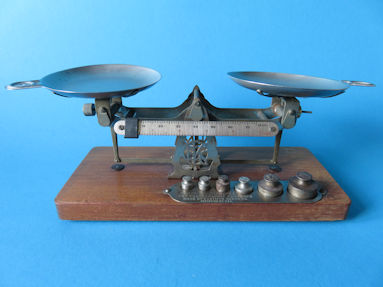

the photographic balance of maker Eastman Kodak


Officially, this photographic balance is called the Eastman Studio Scale. In analog photography you develop the photo roll with chemicals into stable negatives. In the early years, people had to weigh the quantities of chemicals themselves in order to arrive at the correct mixing ratios for the developer. This kind of balances were used for that. Even amateur photographers had their own darkroom. Later these balances became redundant because prepackaged powders were used in the correct amounts for the mix. The Eastman Kodak balance dates from the period 1912 to circa 1948. On the left scale you put the powder to be weighed. The weights are placed on the right-hand scale, if more than 5 grams (respectively 75 grains) have to be weighed. The balance was supplied with weights avoirdupois = grains / ounces or in metric = grams. This copy is a Spanish version, the weights are in G.mos (= Gramos = grams).


back of the balance

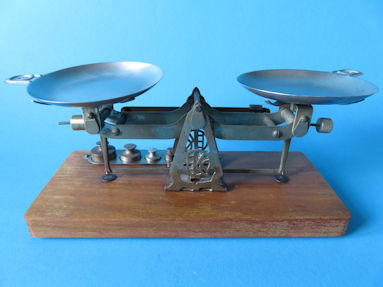

back of the balance


The weights supplied are 2x 5g, 10g, 15g, 30g, and 60g. In the central frame part the pointer for balance is placed, just below the beautifully cut letters EKC, the Eastman Kodak Company. Photographic scales have already been shown before, see for example this one from Narcisse Briais from France and this one from Johnsons of Hendon from England. The American manufacturer Pelouze also has such a photographic or laboratory balance with its scale model Rexo.
Below some more pictures of the Eastman Studio Scale.

scale detail
rotary knobs for fine adjustment
knife-edge bearings, and loose dishes

scale detail
the 6 weights are 2x 5g, 10g, 15g, 30g, en 60g


scale detail
the frame part with the letters EKC


detail 1
the pointer indicates the balance

detail 2

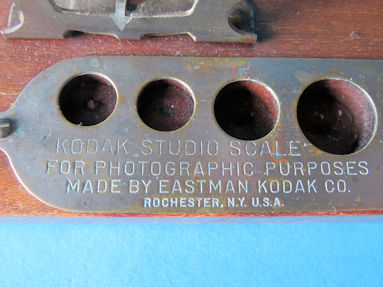

the brand plate with holes for the weights

detail 3
75 grains and 5 grams

detail 4
the left rotary knob for fine adjustment

detail 5
the two dishes are next to the balance

detail 6
the black sliding weight is on the left of the chart

detail 7
upside down

detail 8
four G.mos weights placed obliquely

detail 9
the bottom has three rubber feet

detail 7

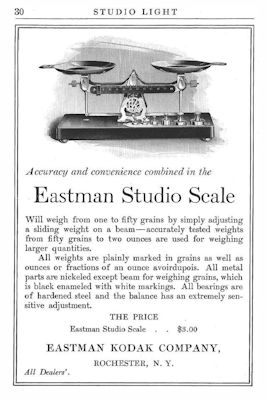

page from Studio Light from March 1916

detail 8

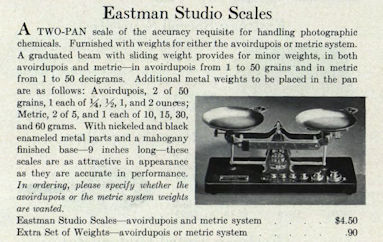

from Eastman Professional Photographic Apparatus from 1936-1937
