GEM POST WAGE
letter scale
made for use in Germany

maker: Triner Scale & Manufacturing Company, Chicago, Illinois, U.S.A.
bruine lijn

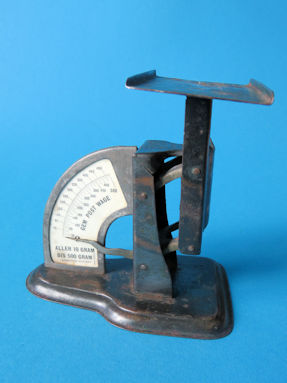

GEM letter scale, maker Triner
GEM Post Wage intended for use in Germany



This letter scale is unmistakably a GEM postal scale made by Triner Scale & Manufacturing Company, Chicago, Illinois, USA. The text on the scale is special: GEM POST WAGE. This looks like a literal translation into German of GEM POSTAL SCALE. Before 1927 WAGE and WAAGE were used in German. In German you actually write Post and Wage together, so without a space: POSTWAGE. From 1927 only WAAGE was allowed to be used for scale. Strange is the spelling of GRAM, it should be GRAMM in German. GARANTIRT ACCURAT should be in good German GARANTIERT AKKURAT. Perhaps it was the correct spelling around 1905-1910?
The scale has a stripe of measure per ten grams. Every 20 grams there are numbers on the scale, 20, 40, 60, and so on. The weighing range is 500 grams. The scale is 11.4 centimeters high. The spring can be adjusted with a rotary knob, and with this the pointer can be set exactly to zero.
On top of the spring housing of the scale is the patent date February 23, 1904. That patent has number US752874. The patent was already applied for on June 22, 1901. The scale described in the patent is significantly more complicated, that scale has a switch to switch a heavier spring on or off, see the patent figure below.
Previously A GEM postal scale intended for use in America was shown, see this GEM letter scale. That GEM also has copper-colored stripes on the scale parts, oxidized copper, I don't know what function these stripes have.
More information on the history of the GEM Postal Scale can be found at American Stationer, the website made by Frank Parsons at The Gem Postal Scale.
Below some more images of this special GEM POST WAGE.

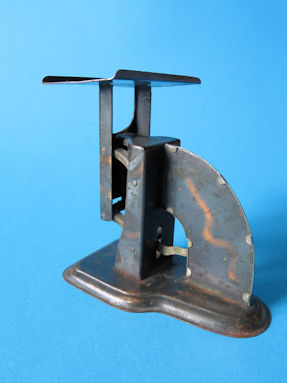

back of the GEM letter scale
back of the GEM Post Wage

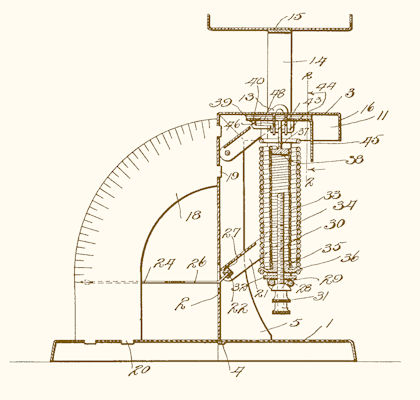

patent figuur
this figure from patent US752874 shows a more complex scale


scale detail
the adjusting knob can be seen in the slot of the housing


the dial
the scale goes up to 500 grams


scale detail
the scale is subdivided in 10 gram increments

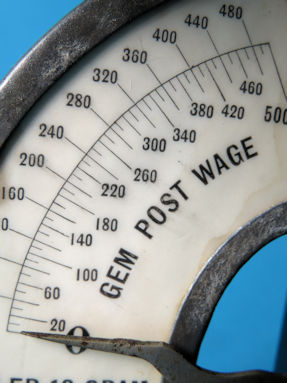

detail 1
the letter scale has the name GEM POST WAGE

detail 2

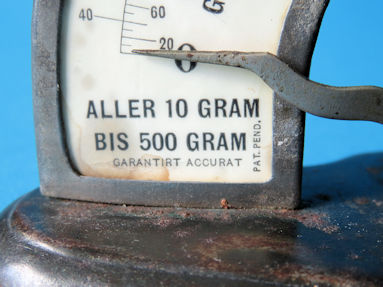

ALLER 10 GRAM BIS 500 GRAM = every 10 grams up to 500 grams
GARANTIRT ACCURAT = guaranteed accurate
PAT. PEND. = patent pending
detail 3

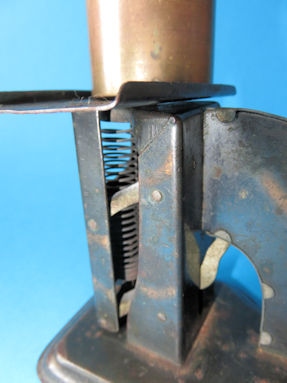

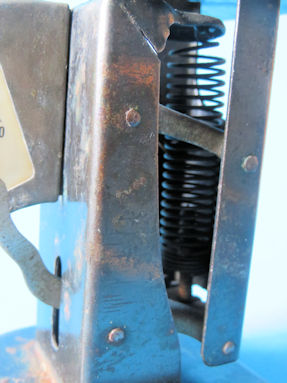

the tension spring with a load of 400 grams

detail 4

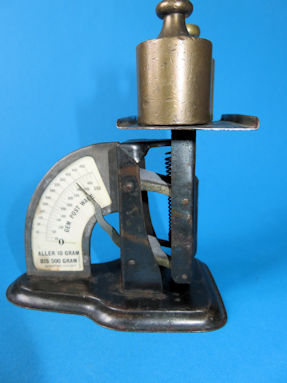

loaded with 2 x 200 grams

detail 5

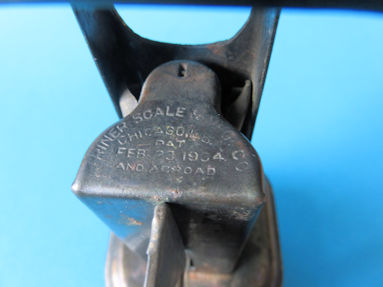

on top of the spring housing is this text:
TRINER SCALE & MFG. CO. CHICAGO, U.S.A.
PAT. FEB. 23, 1904
AND ABROAD
detail 6
the spring is loaded here up to the 500 grams maximum

detail 7

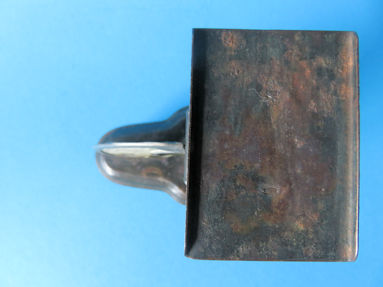

the rectangular letter tray

detail 8
the tilted GEM POST WAGE

detail 9
the bottom of the GEM
