HANSON
model 1509
Air Mail
postal scale

maker: Hanson Brothers Scale Company, Chicago, Illinois, U.S.A.
bruine lijn

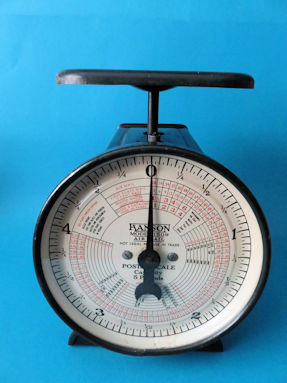

postal scale, maker Hanson, U.S.A.
Air Mail postal scale, Hanson Bros. Scale Co., U.S.A.


This postal scale was made by Hanson Brothers Scale Company, from Chicago, Illinois, U.S.A., it is model 1509 and is named Air Mail. This model number has been around for decades. The name Air Mail was used for a limited number of years. Over the years the pointer got simpler. The weighing platforms also differed over the years. The location of the Air Mail rate on the dial as well. Previously, another 5 pounds postal scale from Hanson has been shown, see here. The scale itself weighs no less than 1838 grams, it is a heavy bloke. The weighing platform measures 14 x 14 centimeters. The base is 14 cm wide and 14.5 cm deep. The diameter of the dial including the bezel is 16.8 cm. The scale is 22.8 centimeters high.
The airmail rate of 8 cents per ounce up to 4 pounds [= 64 ounces] dates from March 26, 1944. In 1946 it was reduced to 5 cents per ounce. The first class letter rate of 3 cents an ounce was introduced in 1932 already and was not changed until 1958.
Below some more images of the Hanson Air Mail postal scale.

back of the scale
back of the Air Mail postal scale

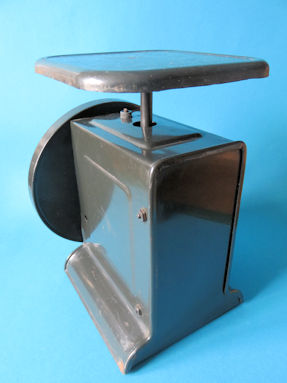

side view
side view


de wijzerplaat

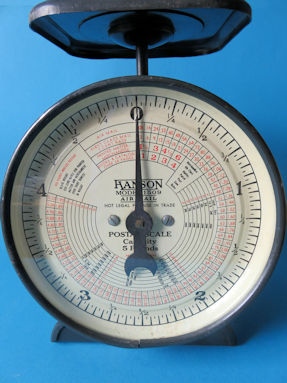

the dial with many postal rates
the Air Mail rate of 8 cents per ounce was introduced
on March 26, 1944

side view
side view



detail 14

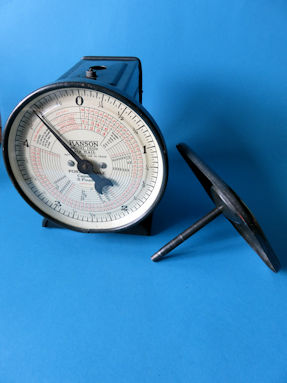

the weighing platform with a long stem

detail 15

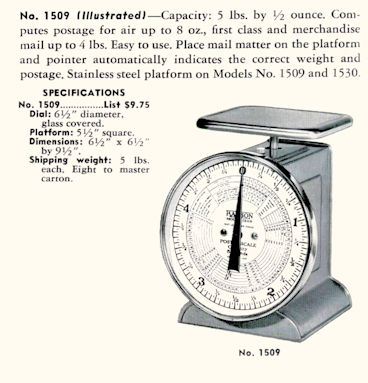

from the Hanson catalog No. 29 from 1952

detail 16
the little rotary knob for the zero adjustment

detail 1
the brand name, type number and model name

detail 2
lots of information on the dial

detail 3
the weighing range is 5 Pounds [= 2,268 grams]

detail 4
Air Mail is the first rate type

detail 5
dial detail

detail 6
dial detail

detail 7
this rate type depends on the distance

detail 9
the bottom of the scale

detail 8
the sturdy weighing platform

detail 13
the pointer in 1928

detail 10
the pointer in 1944

detail 12
the pointer in 1949

detail 11
the pointer in 1953
