OAKES model E-53
egg scale for one single weight class

maker: The Oakes Mfg. Co., Tipton, Ind., U.S.A.
bruine lijn
egg grader, maker Oakes
Oakes E-53 egg grader

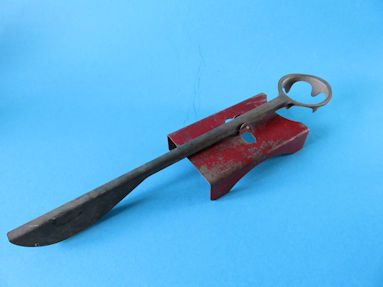

This Oakes E-53 egg scale is made by The Oakes Mfg. Co., of Tipton, Indiana in the U.S.A.. The egg weight class 23 oz is stamped into the base plate. The base plate was originally painted red, this paint has partly disappeared. This Oakes was sold from 1933 to 1941. [Source: North American Egg Scales by Charley Amsbaugh]. This simple egg scale consists of three parts. The parts are made of rusting magnetic steel. This scale model was also available for 18, 19 and 22 oz. Those are the weights in ounces per dozen eggs. Converted, the 23 oz per dozen equates to an egg of 1.9167 ounces, which is 54.3 grams. An Oakes egg scale adjustable for more egg weight classes was previously shown on this website, see here.
Below some more pictures of the Oakes E-53 egg grader.

back of scale
the other side of the Oakes E-53 egg scale

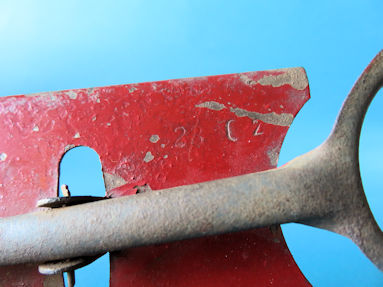

detail
23 Oz

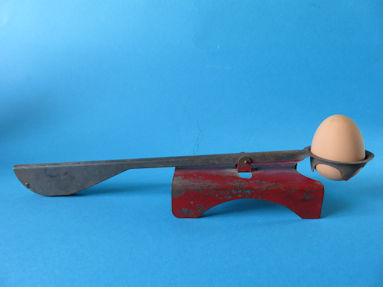

with egg from the class above 23 oz per dozen
animation: with egg from the class above 23 oz per dozen

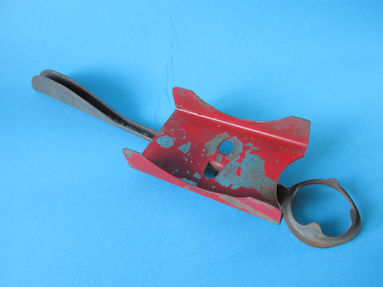

scale bottom
bottom partly paintless



detail 1

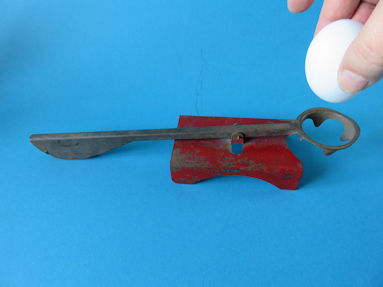

start weighing

detail 2
this egg is below 23 oz per dozen

detail 3
heavy eggs
