JUGENDSTIL
SCALE
KERN 15/45
replica

maker: Gottlieb Kern & Sohn, Ebingen, Germany
bruine lijn
Jugendstil scale, maker G. Kern & Sohn
Jugendstil scale, maker G. Kern & Sohn


This Jugendstilwaage, this is the name that Gottlieb Kern & Sohn himself used in the catalogs from 1984 to 1992 is said to be a replica. The original precision scale was designed in 1910 and was intended for use by pharmacists and goldsmiths. The original version had stop arms under the weighing lever and in addition to the brass gram weights from 1 to 20 (3 x 1g, 2g, 5g, 2 x 10g, and 20g) also had a number of aluminum gram-part weights from 10 milligrams under a glass plate. This replica has no stop arms. The gram-part weights and the glass plate are also missing. Moreover, it is strange to supply 100 grams of weights (1g, 2 x 2g, 5g, 2 x 10g, 20g and 50g) with a precision scale with a limit value of 50 grams on the weighing lever, and not as originally a total of 50 grams of brass weights. The original black polished wooden base plate stands on square flat blocks of wood. Here the base plate is made of brown lacquered oak and this base plate has three felt glued sliding surfaces. A slightly more expensive version on a marble base was also offered. A replica is an accurate copy of an object, which does not seem to be the case here. The catalogs state that this replica can be used as a letter scale, tea scale, spice scale, chemical scale, et cetera. The dimensions of the base are 202 by 112.5 millimeters, the maximum height of the scale is 190 millimeters.
This replica fits in a row with this one 500 Jahre Post and this goddess Fortune.
Below are some more images of this special Jugenstil scale that was only offered for a limited number of years.

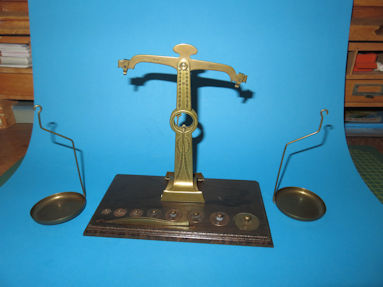

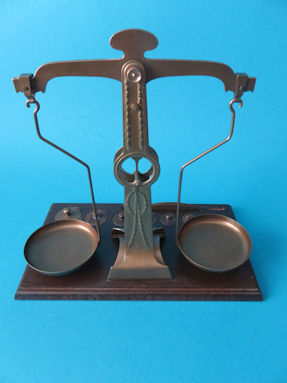

back of the scale
back of the scale

detail 1

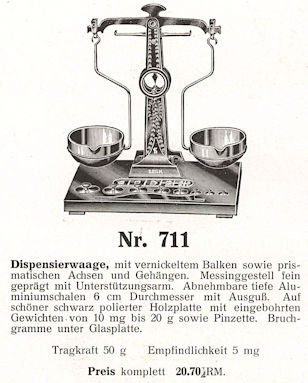

from the 1930 catalog

detail 2

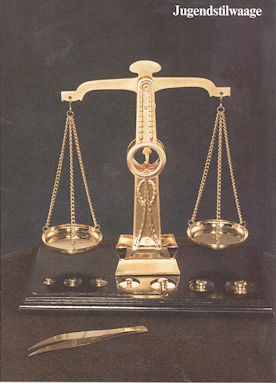

from the 1984 catalog
no knife edge bearings, with chains!

detail 3

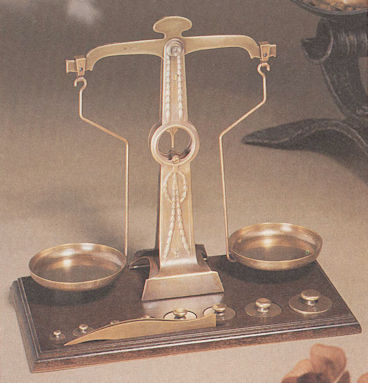

from the 1987 catalog
knife edge bearings and suspension rods

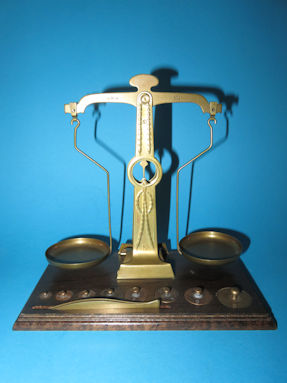

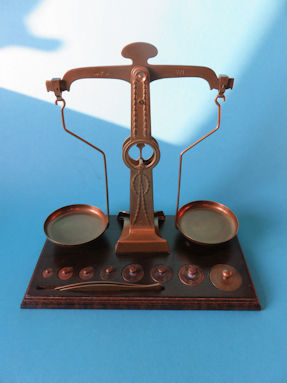

scale
de replica


moved weights
animation: moved weights
[move the pointer over the photo]

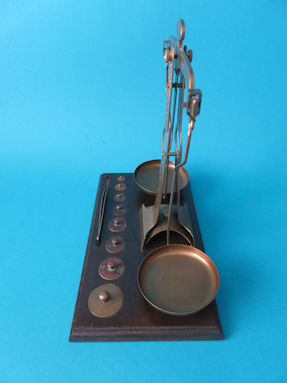

scale side view
side view



detail 10
knife edge bearing

detail 11
Kern's logo

detail 12
the weighing capacity

detail 4
the initials logo K and S

detail 5
balance with vertical pointer in the viewport

detail 6
special mounting on base plate

detail 7

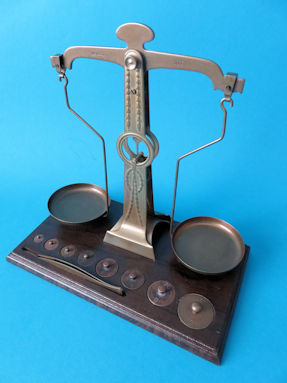

Jugendstil scale

detail 8

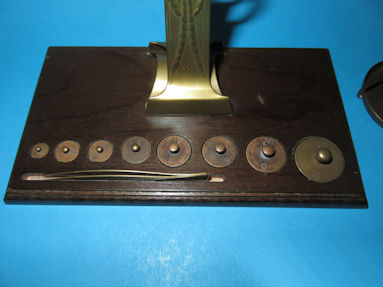

the weights

detail 9

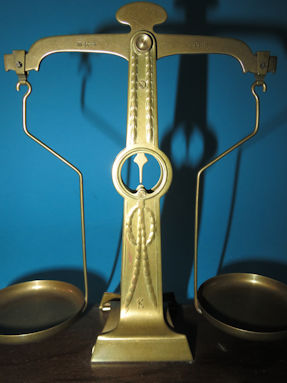

the decorated Jugendstil stand

detail 13

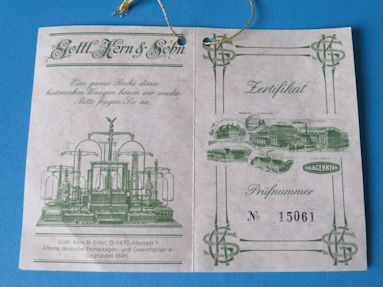

the enclosed numbered certificate

detail 14
the initials G K S of Gottlieb Kern & Sohn

detail 15

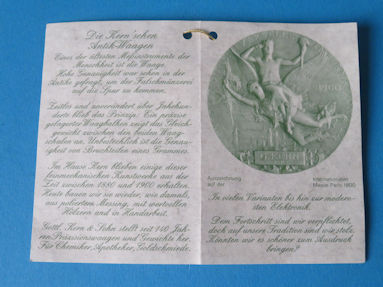

inside of the certificate

detail 16
on the back are the products of Kern: balances and weights

detail 17

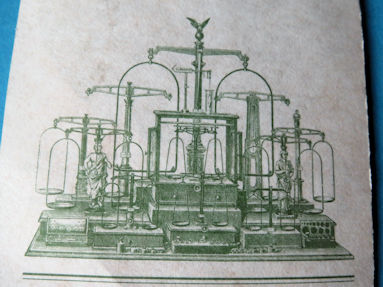

the different Kern factories over the years

detail 18

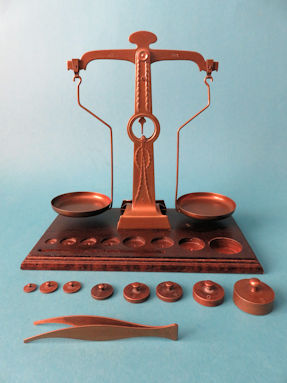

the balance and the detached suspension rods with the fixed scales
