MAXIMUS
precision letter scale

maker: Philipp Jakob Maul, Hamburg, Germany
bruine lijn
letter scale, maker Ph.J. Maul
Maximus 20 grams rocker


This precision letter mail weight limit meter is made by Philipp Jakob Maul from Hamburg in Germany. The green lacquered special Präzisions-Überporto-Waage (Surcharge Balance) is described in patent DE1650767U from 1953 and also in DE1649829U also from 1953. The scale was available with limit values of 15, 20 and 50g. The English advertising text also mentions the option of setting the weight limit in British ounces. A simpler version of such a tilting scale was shown earlier, see this Maximus.
The highest point, which is the rubber stop of the scale, is 19.7 centimeters high. The total length, from the bend of the scale to the nickel-plated letter tray, is 24.5 centimeters. The scale has three-sided steel bearing shafts, also known as knife-edge bearings. The claimed sensitivity is 0.1 grams.
Below some more images of the Maximus with spirit level.

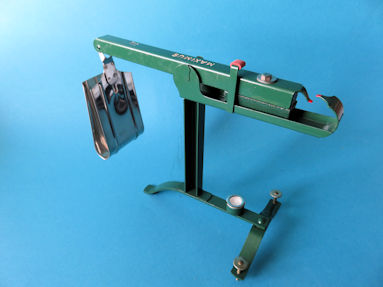

back of the scale
back of the scale

detail

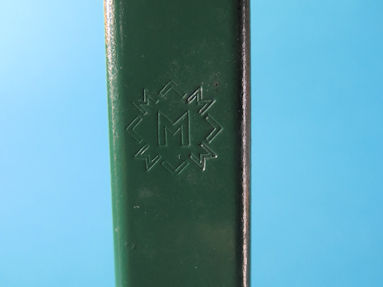

the double-lined M logo of Ph.J. maul


without and with 20 grams
animation: test with a 20 grams weight
results in a precise equilibrium
[move the pointer over the photo]
detail

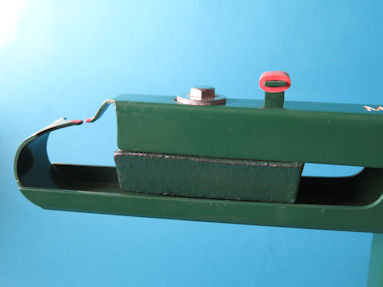

the red points are thus closest to each other
the balance arm is still detached from the rubberized stop


detail 10

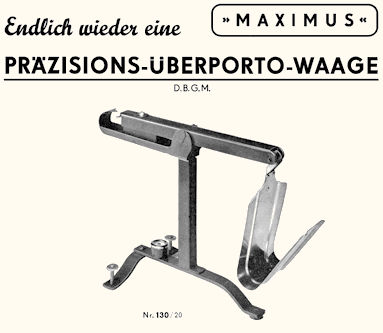

the top half of the advertising sheet for this Maximus

detail 11

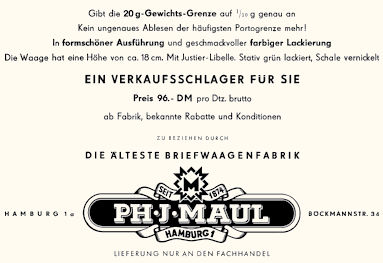

the lower half of the advertising sheet for this Maximus

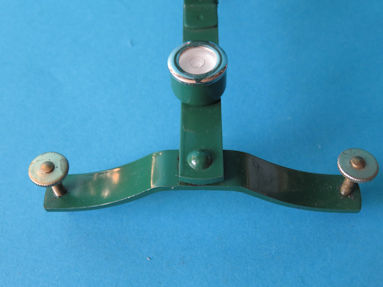

detail 1

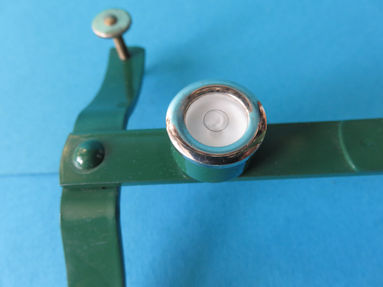

the scale foot has a spirit level

detail 2
there are two adjusting screws to level the scale

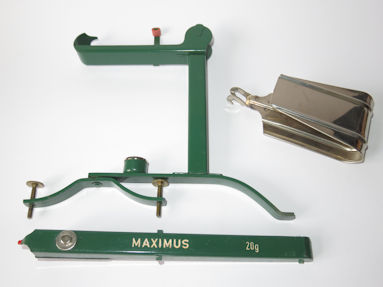

detail 3
the three disassembled scale parts

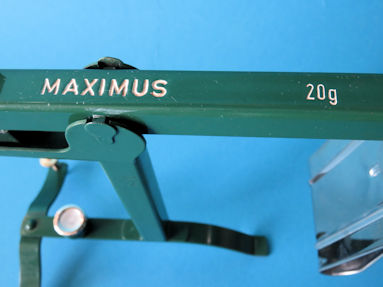

detail 4
the scale name MAXIMUS and the tilt limit 20 grams

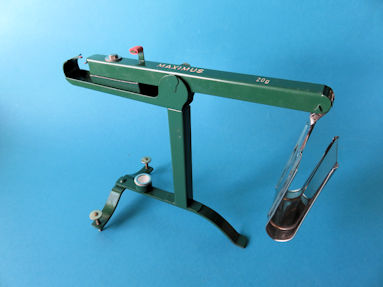

detail 5

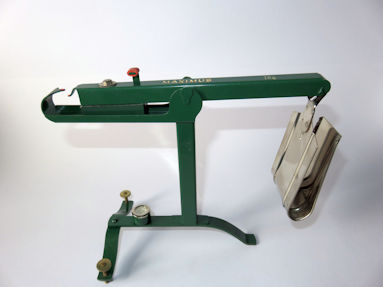

the Maximus ready for use

detail 6

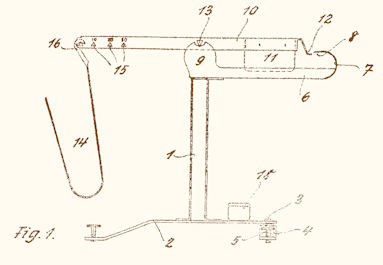

Figure 1 from the German GebrauchsMuster 1650767 of January 1953
has more suspension points for the letter holder and 3 adjusting screws,
the Maximus made has 1 suspension point and 2 adjusting screws

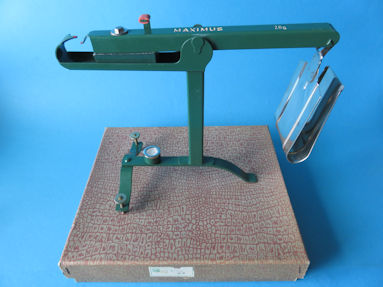

detail 7
the Maximus on top of the packaging box

detail 8

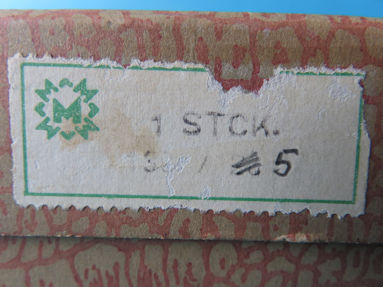

the sticker on the box

detail 9
the three Maximus parts in the box

detail 12

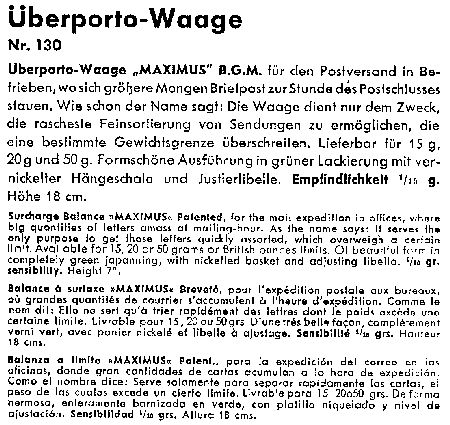

the advertising text in 4 languages lists versions for 15g, 20g, 50g, and ounces
