MACITO
self-zeroing when tilted
can be read on two sides

maker: Jakob Maul, Zell, Germany
bruine lijn

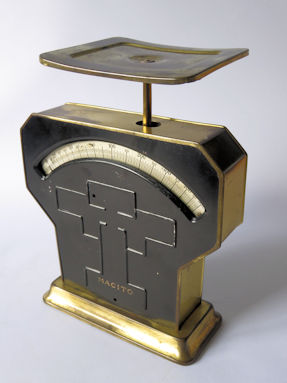

Macito letter scale, maker Jakob Maul

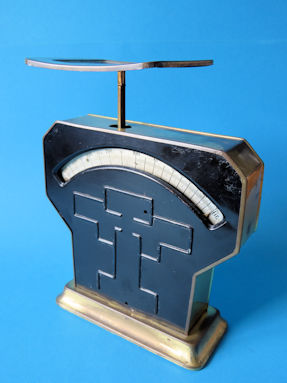

Macito letter scale front


This MACITO is made by Jakob Maul from Zell in Germany. The Macito trademark was registered in 1932 and was not deleted until 1973. This is the third Macito on this website. Previously, the round version and the angular version were shown. Both versions are not self-adjusting but, for example, should be set to zero by means of a rotary knob when the position is skewed, and they only have a scale on one side. The MACITO shown here does reset itself to zero in the event of an obliquity and can be read from both sides. The measurement scale on the front increases from zero on the left up to 500 grams. Up to 100 grams, each gram has a stripe of measure. From 100 grams to 500 grams there is a stripe per five grams. The measurement scale on the back increases from right to left. The scale mechanism has two counterweights, at 100 grams the second counterweight is put in action. A third weight keeps the measurement scales at zero at skew. At the bottom of the front of the scale housing is the MACITO trademark. Just below it is the abbreviation D.R.G.M. that stands for Deutsches Reich Gebrauchs Muster, a design protection faster and cheaper to get compared to a patent. I have not yet found the relevant Gebrauchsmuster. This MACITO version is quite rare. The simpler angular model is probably of more recent date, its back plate still has the contour of the reading window pressed in, but that reading window is not punched out. This Macito is 22.5 centimeters high, the base measures 15.8 x 7.2 x 2.0 cm. The scale housing is 12.3 and 18.2 cm wide, 4.2 cm deep and 15.8 cm high on top of the base. The letter tray is 11.5 x 10.0 cm. The three millimeter holes on the front and back are to be used during transport. A round bar through the top holes then restricts the movement of the scale mechanism. A round bar through the lower holes blocks the movement of the third weight with both measurement scales.
Below are some more images of this rare double sided Macito letter scale.

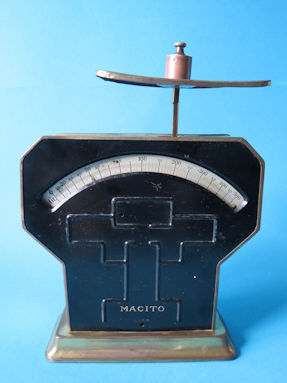

back Macito letter scale
Macito letter scale back

two different loads on the letter scale
animation: loaded with 50 grams and with 500 grams
[move the pointer over the photo]

no load and maximum load
animation: no load and maximum load
[move the pointer over the photo]

no load and maximum load
animation: no load and maximum load
[move the pointer over the photo]

detail 7
information from the German journal Mass und Gewicht: the legally protected trademarks of the firms Maul

detail 8
by Lindner J., No. 9, March 1989, pp. 178-183


detail 1

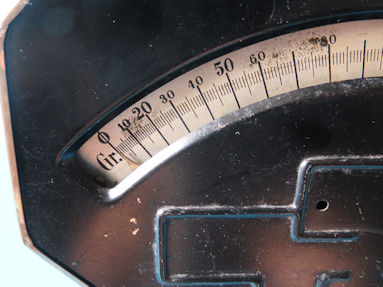

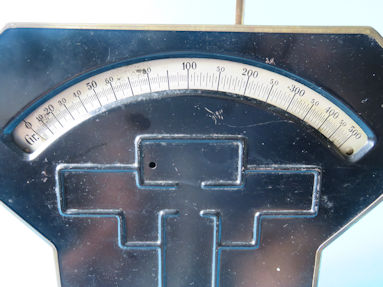

front scale ascending from left to right

detail 2
per gram a stripe of measure up to one hundred grams

detail 3

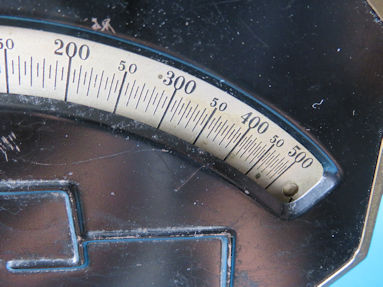

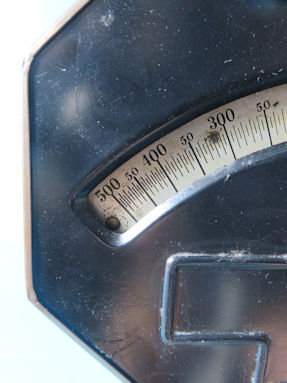

from one hundred to five hundred stripes per five grams

detail 4
from one hundred to five hundred stripes per five grams

detail 5

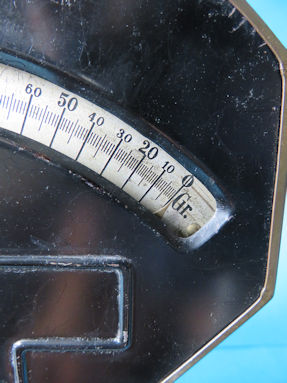

up to a hundred grams per gram a stripe of measure

detail 6

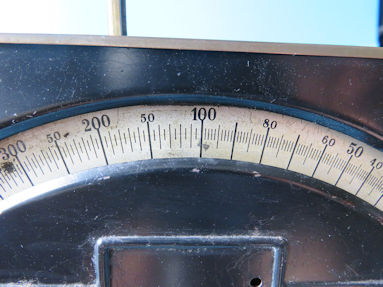

back scale ascending from right to left

detail 7

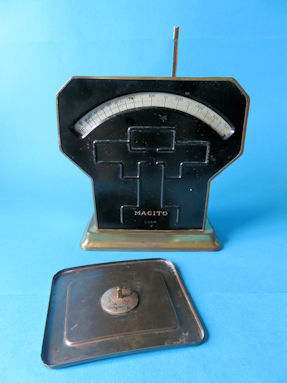

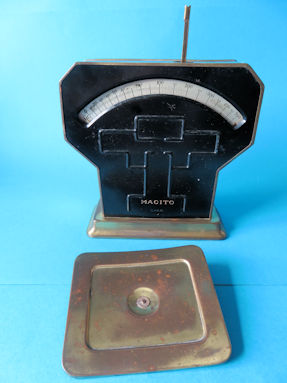

detached letter plate

detail 8
on the bottom is a cardboard with a felt layer

detail 9
bottom of detached letter plate

detail 7
this scale is marked on the right V. = Vorn (front)

detail 8
a measurement scale at the front and also at the back

detail 9
this scale is marked on the left H. = Hinten (back)

detail 7
left the front with model name MACITO, right the back

detail 8

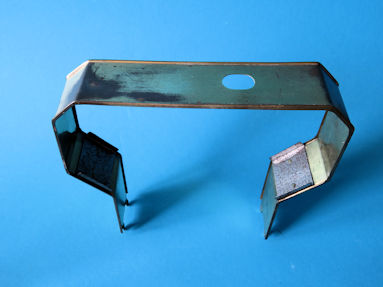

the angular side part

detail 9

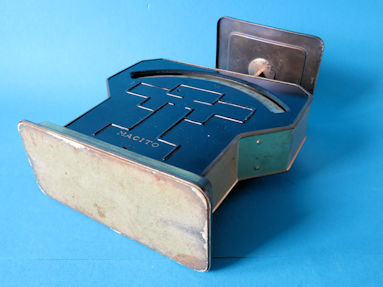

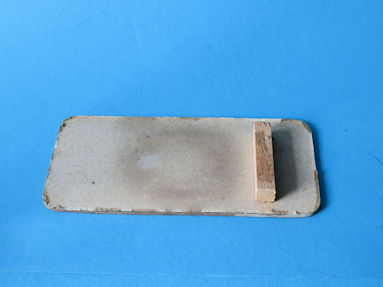

the bottom carton with filler wood part

detail 7

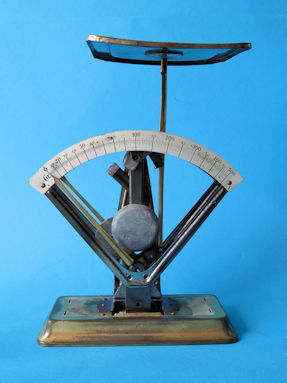

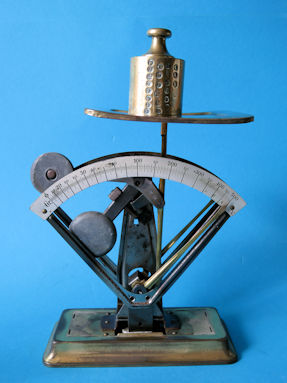

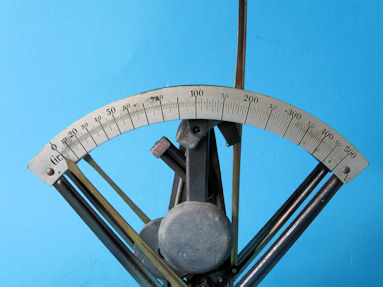

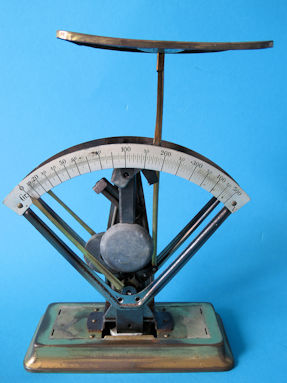

the scale mechanism has two counterweights

detail 8

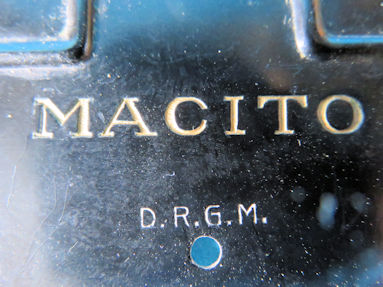

the model name MACITO and the abbreviation D.R.G.M.

detail 9

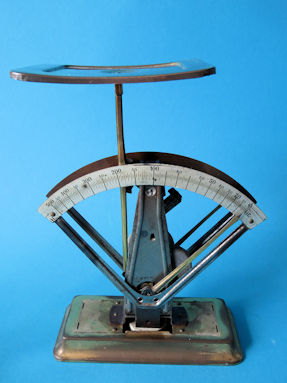

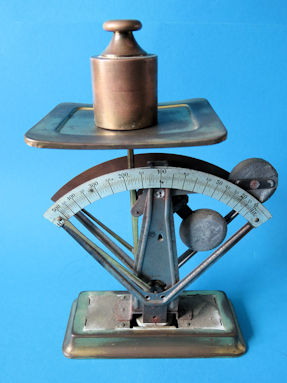

rear of the maximum loaded scale

detail 7

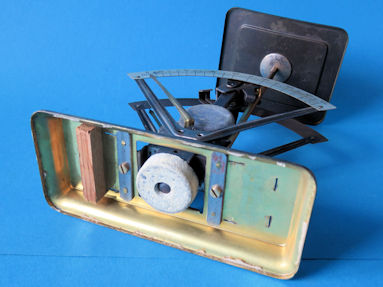

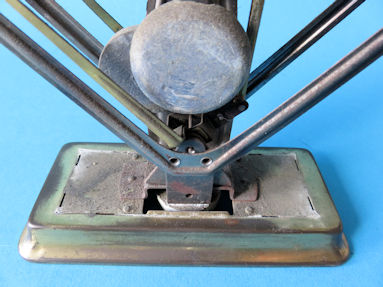

the third weight visible here in the recess ensures
the automatic zeroing of the measuring scales

detail 8
the third weight hangs in the free space of the bottom part

detail 7

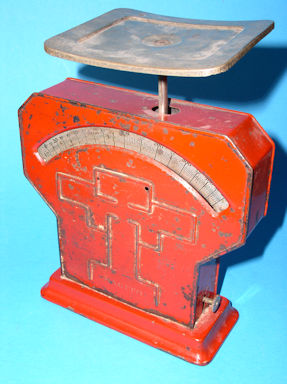

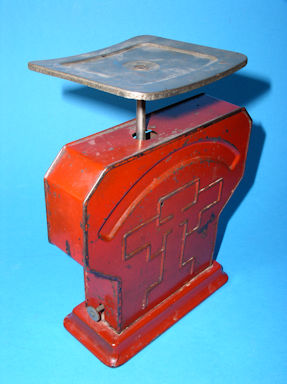

the simpler version of the Macito has a zero setting
button on the right and a scale on just one side


the front and back
animation: the front and the back
[move the pointer over the photo]


detail 8
the back of the simpler Macito version
a window for the weight scale is pressed in
but not punched out
