NARCISSE BRIAIS
letter scale
for use in Spain

maker: Narcisse Briais, Paris, France
bruine lijn

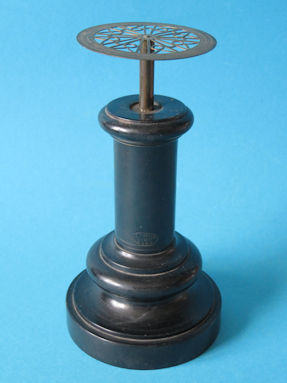

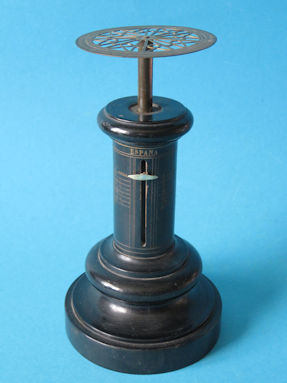

letter scale, maker Narcisse Briais
Spanish version of the Briais letter scale


This is a very old letter scale. It is a design by Narcisse-Eugène Briais from Paris in France. The design was protected on July 11, 1856 with a patent FR28419. The beautiful title of the patent reads: Brevet d'invention pour des perfectionnements apportés aux balances dites pèse-lettres. This was followed by some additions to the patent in 1857 and 1858. There are various versions of this model. There are differences between the wooden part and the letter plate. In the book Pèse-lettres ou Balances postales, guide de collection en français by Williams Archambaud are pictures of various variants. It also contains the aforementioned patent, with the text and the figures. A slightly thicker and battered version was previously shown on this website, see here and see also the three photos at the bottom of this page.
The NB logo, the well-known logo of Narcisse Briais, is not yet on this letter scale. There is, however, a first different logo on the back. In an oval is written N. Briais, below it is BREVETÉ (= patented) and underneath the abbreviation S.G.D.G. (Sans Garantie Du Gouvernement = without guarantees from the government). Narcisse Briais was a French instrument maker who manufactured letter scales and balances between 1859 and 1886. The N.B. logo is said to have been introduced from 1876. After 1886 G. Restorf took over the company and continued to use the N.B. logo. In 1914 Restorf stopped the company. Thereafter, the N.B. logo was still used on letter scales by M. Ducos 1915-1926 and from 1927-1931 by M. Guérin (source: Le Système métrique 1997-3, page 1124). Letter scales by Narcisse Briais, or by his successors, have been shown before, see the photographic scale, the Loth scale, the herbs & powder scale, and this déposé scale.
Before I have seen examples of this wooden letter scale for use in France, in Italy, in Belgium, and now also for use in Spain. PESE-LETTRES is on other copies in place of land.

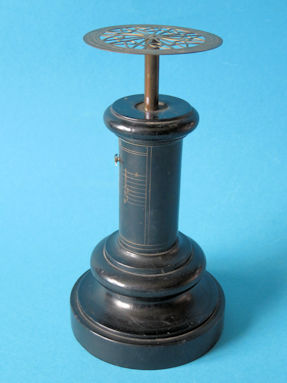

back of the letter scale
back of the ESPANA letter scale


The weighing range of this Spanish version of 4 Onza is shown on the left of the scale and is divided into half Onza. The Onza is comparable to the English ounce and will be 28.35 grams. To the right of the scale are the values 1 to eight. This rate? unit is not clear to me yet. The letter scale is 18 cm high, the largest wooden diameter is 9.7 cm, the smallest wooden cylinder is 3.5 cm round and the diameter of the letter plateau is 7.2 cm. The pointer was broken, as is usually the case with letter scales of this model. The pointer is still missing on some photos. I made a replacement pointer of brass to make the letter scale complete again.
Below some more images of this old letter scale by Narcisse Briais for use in Spain.

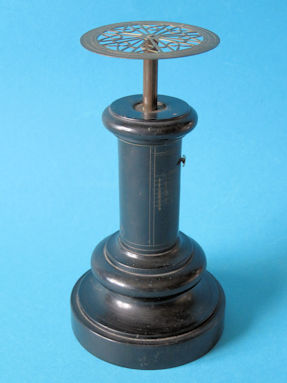

side view
side view



unloaded and loaded
animation: unloaded and loaded with 100 grams
[move the pointer over the photo]

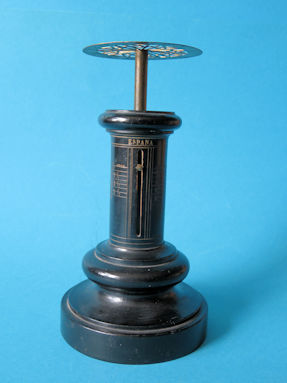

a complete pointer is still missing here

side view
side view



detail 1
the striking openwork letter plate

detail 2

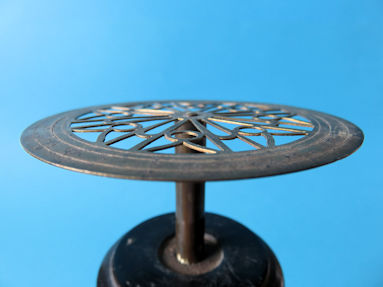

the letter plate is 0.5 millimeters thick

detail 3
a wooden stem serves as connection to the vertical scale tube

detail 7
light show

detail 8

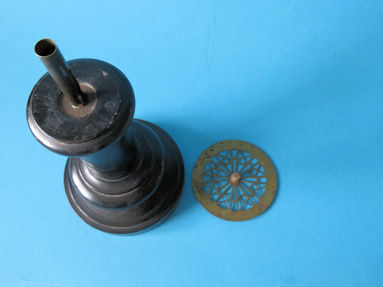

scale house and the letter plate

detail 9

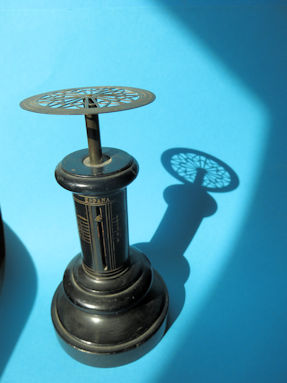

play of light

detail 10

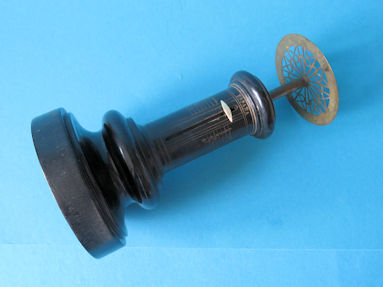

on its side

detail 11

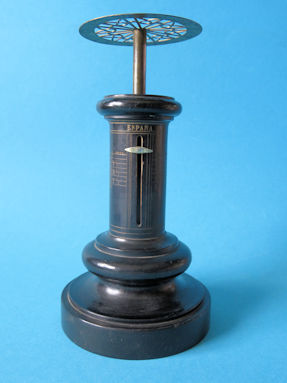

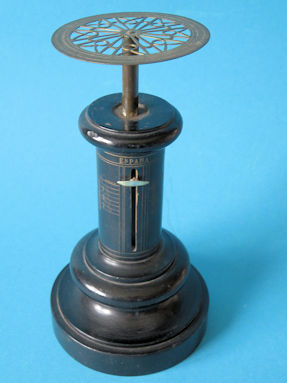

a complete pointer has been applied

detail 12

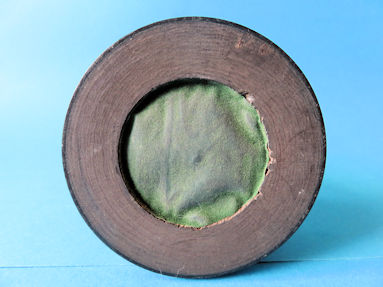

bottom

detail 13
from below on its side

detail 14

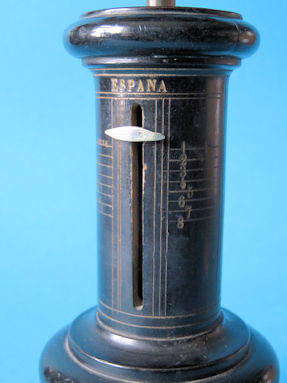

the revision pointer

detail 15

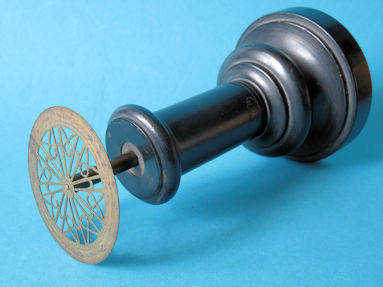

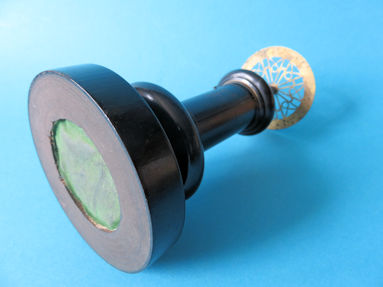

from above on its side

detail 4

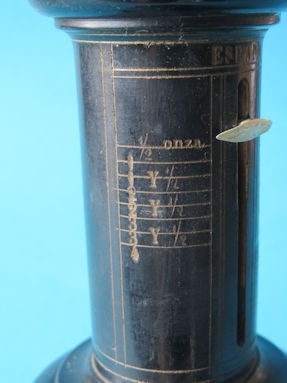

weighing range 4 onza

detail 5

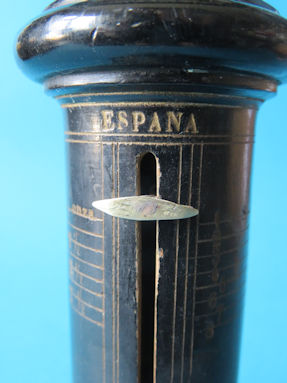

ESPANA

detail 6

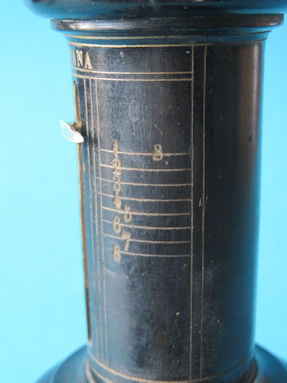

the postal letter rate?

detail 16

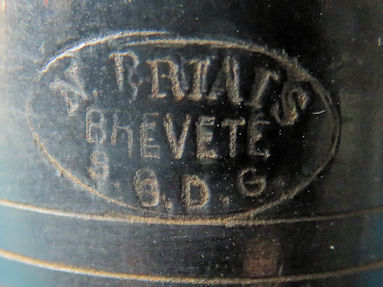

on the back of the letter scale is written in an oval:
N. BRIAIS
BREVETÉ
S.G.D.G.
detail 17
ESPANA

detail 18

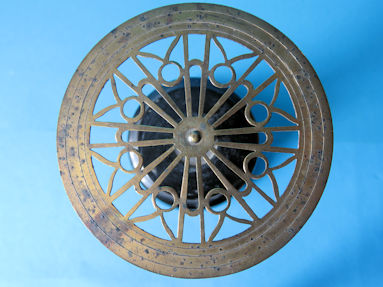

the special openwork letter plate



detail 19

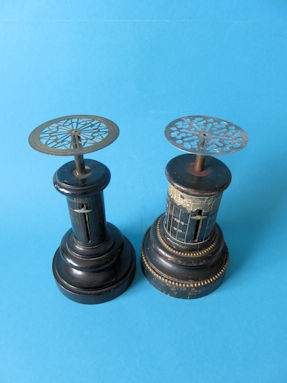

the Spanish version next to a thicker French version
obliquely seen from above

detail 20

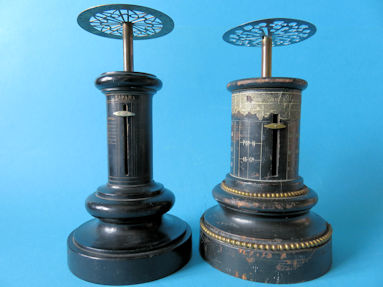

the Spanish version next to a thicker French version
seen from the front

detail 21

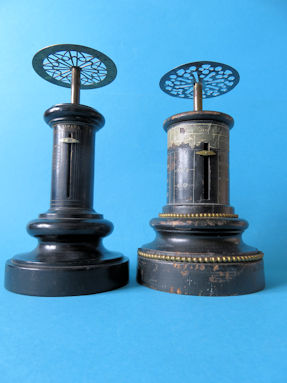

the Spanish version next to a thicker French version
obliquely seen from below
