BILATERAL
letter scale

maker: Jakob Maul, Bad König-Zell, Germany
bruine lijn
letter scale, maker Jakob Maul
Jakob Maul Bilateral letter scale


This Bilateral letter scale is made by the company Jakob Maul from Bad König-Zell in Germany. This model has already been shown in different versions and weighing ranges before, see 500g version, 250g version, 1000g version, 500g version, en deze modern 250g replica. The example shown here differs because it is largely chrome-plated. This letter scale has two scales, the lower one goes from 0 to 60 grams with one stripe per gram, and the top scale from 0 to 250 grams has stripes per five grams. The lower scale does have a lot of stripes. The scale has the JM logo of Jakob Maul. This logo was established and protected in 1912 and extended until 1983. The bottom is covered with a layer of fabric on cardboard, to prevent scratches on the surface.
The height of this letter scale is 16.5 centimeters. The base measures are 11.0 x 8.2 cm, the letter plate measures 9.0 x 7.7 cm.
Below are some more images of this chrome-plated Bilateral letter scale.




back of the letter scale
back of the letter scale

scale detail

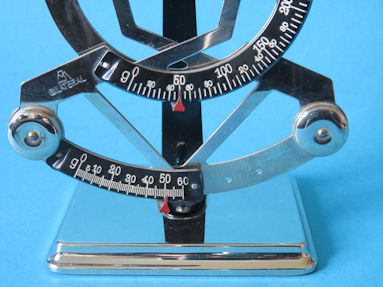

50 grams on the letter plate

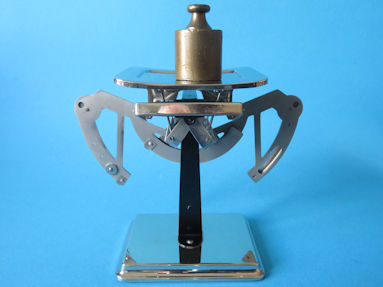

maximum load on the scale
animation: load to the max
[move the pointer over the photo]

scale backside
the rear of the maximum loaded scale


detail 1

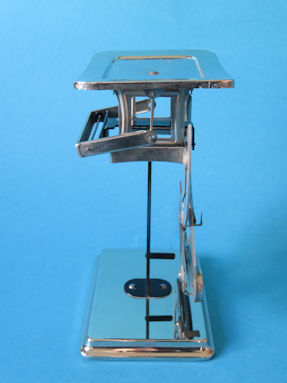

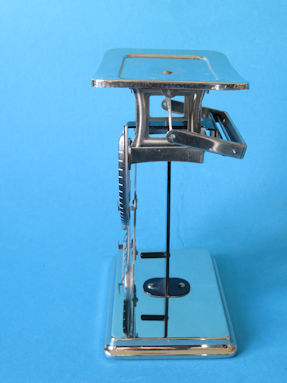

side view

detail 2

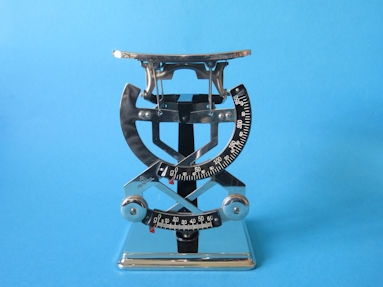

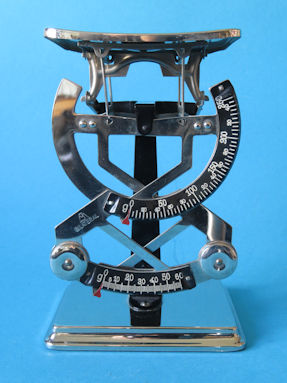

front view

detail 3

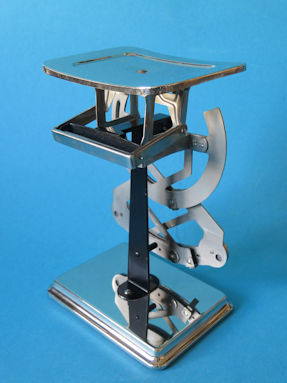

side view

detail 4

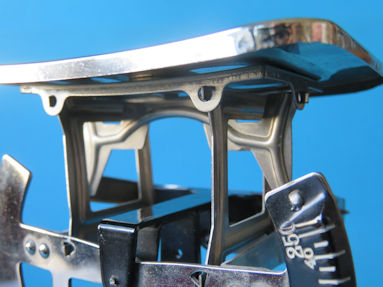

part of the scale mechanism

detail 5

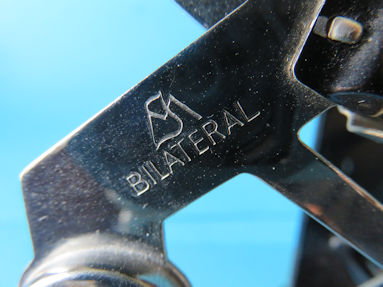

the JM logo and the name of this type of scale

detail 6
the weighing range is 250 grams

detail 7

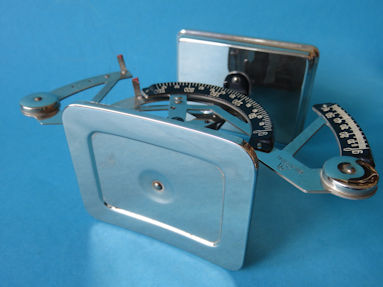

the letter plate in the picture

detail 8

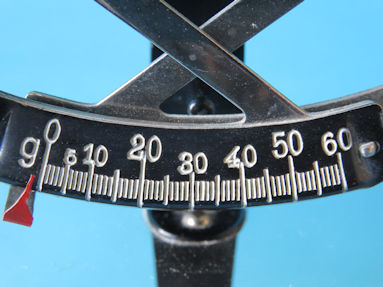

a lot of stripes close together

detail 9

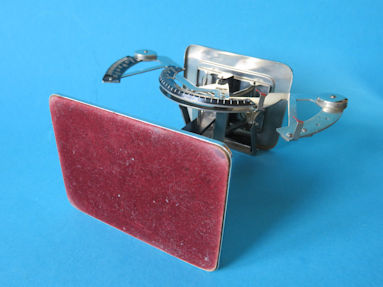

the bottom in the picture
