ASPARAGUS SCALES

maker: Philipp Jakob Maul, Hamburg, Germany
bruine lijn
asparagus scales, maker Ph.J. Maul
asparagus scales


This scale is especially for weighing asparagus and comes from Philipp Jakob Maul from Hamburg in Germany. Only the shape of the weighing platform differs from the already known letter scales, see for example here and here. According to a Ph.J. Maul catalog from the 1930s, the asparagus scales was available in four ranges: 50 grams, 100 grams, 150 grams and 250 grams. This asparagus scales features the M logo of Ph.J. maul. Below it is the abbreviation D.R.G.M. in full Deutsches Reich Gebrauchs Muster. That is a design protection, faster and cheaper than a patent. The 50 grams asparagus scales is 13 centimeters high.
At the time, Ph.J. Maul also had in the catalog a sugar beet scales with a range of 2 kilos, egg scales up to 60, 75 and 100 grams, and a cigar scales with a range of 250 grams. In addition to these special scales, other versions were also mentioned as options: diet scales, hair weighing scales, grain sample scales, etc., ask for a quote.
Below some more pictures of this asparagus scales.

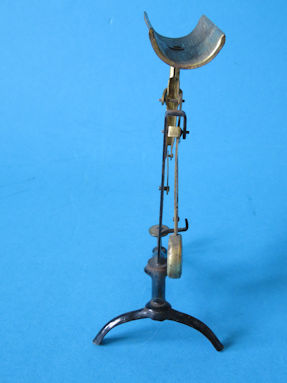

back of the scale
back of the asparagus scales

detail 1

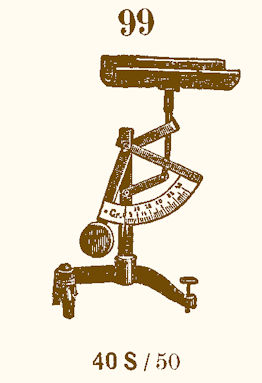

as depicted on an overview poster by Ph.J. Maul
from circa 1930, on which the asparagus scales
still has a heavy cast iron base

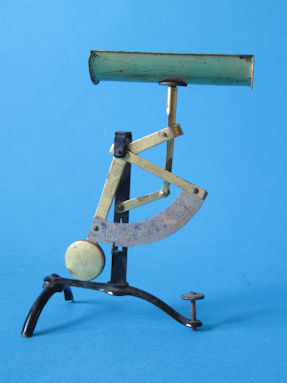

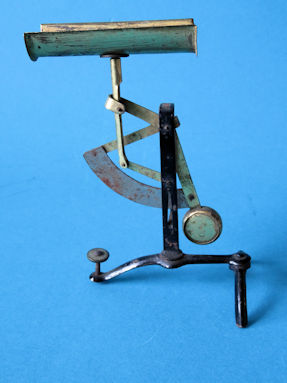

side view
side view

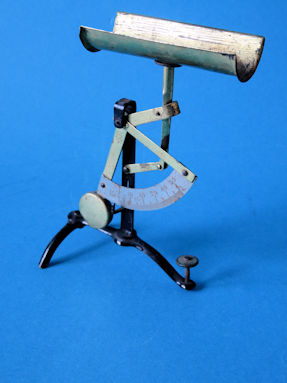

the asparagus scales
the asparagus scales

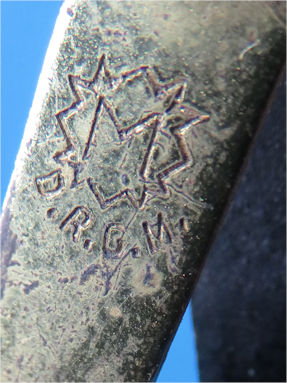

M logo with abbreviation D.R.G.M.
with the M logo and with the abbreviation D.R.G.M.

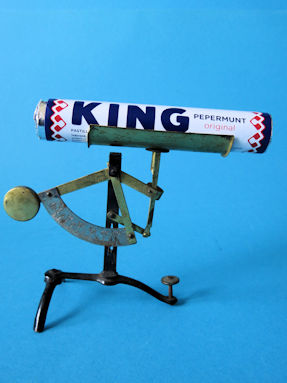

detail 1
no asparagus, but a roll of peppermint

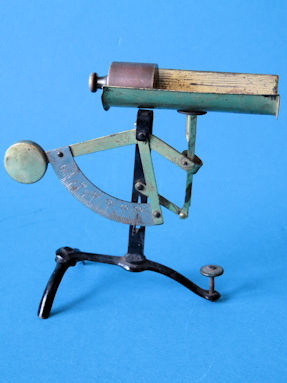

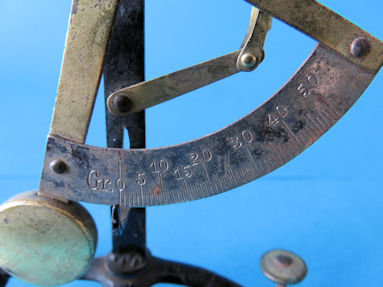

detail 2
weighs per gram up to 50 grams

detail 3
no asparagus, but a weight of 50 grams
