PETRUS 118
letter scale

maker: Industrias Petrus S.A., Barcelona, Spain
bruine lijn
letter scale, maker Industrias Petrus

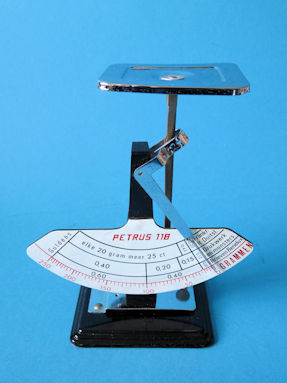

Petrus 118 letter scale


This letter scale has the model name Petrus 118 and is made by Industrias Petrus S.A. from Barcelona in Spain. in full: Fabrica de articulos metalicos para oficina maquinas y grapas de uso industrial. There appears to be a Spanish patent in the name of Industrias Petrus with the date November 19, 1975 and the patent number ES216768U. That patent shows a version with a folding counterweight and thus has two weighing ranges. The figures of the patent are very similar to the Regent, a letter scale by Jakob Maul. The Petrus 118 has a scale of measure with a horizontal top flank on the left and right, and no sloping flanks as on the patent drawings and on the Regent. The Petrus 118 letter scale has just one weighing range of 250 grams. This copy was intended for use in the Netherlands. The scale in grams also shows the Dutch postal rates valid in the short period February 1, 1967 to February 1, 1969. In addition to the rates for letter post in the Benelux, there are also rates for printed matter and samples, and letter rates to France, Italy and Germany on the relatively large scale of measure.
Below some more pictures of the Petrus 118 letter scale.

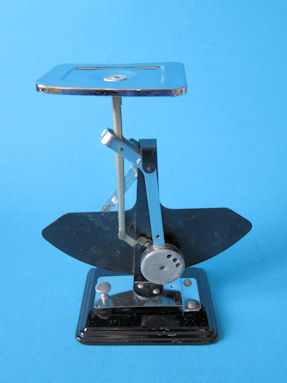

back of the scale
back of the letter scale

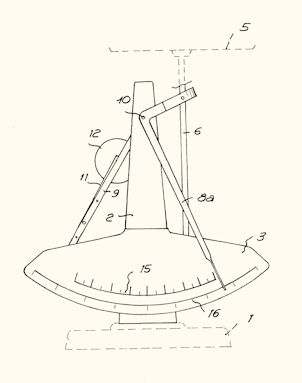

figure 1 of the Spanish patent ES216768U
figure 1 of the Spanish patent ES216768U
of November 19, 1975

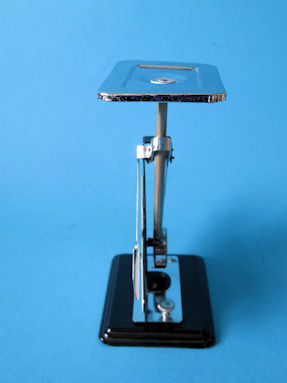

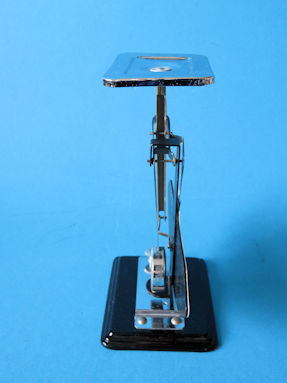

scale side view
side view

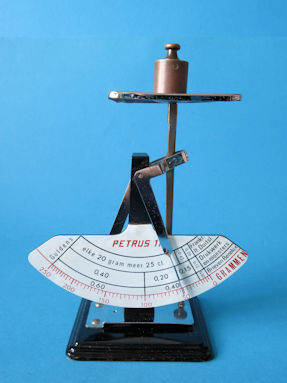

loaded with 50g or with 250g
animation: loaded with 50g or with 250g
[move the pointer over the photo]

scale side view
side view


detail 1
the weighing range of 250 grams is subdivided per 5 grams

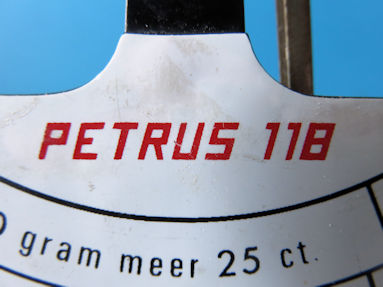

detail 2
the model name

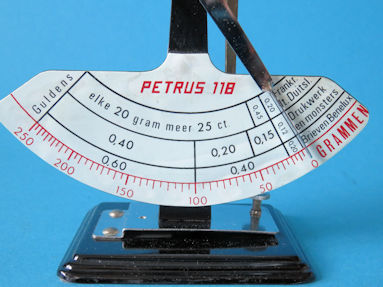

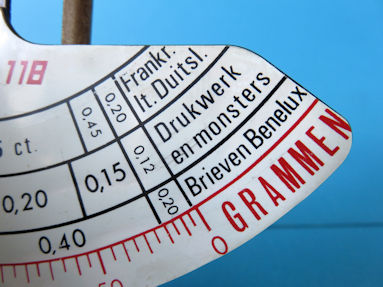

detail 3
three rates in Dutch guilders and a scale in grams

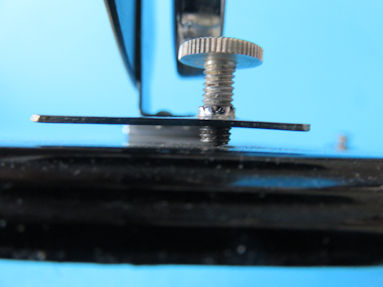

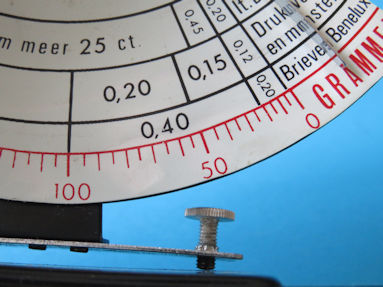

detail 4
the zero adjustment screw

detail 5
chrome parts

detail 6
clear measurement scale

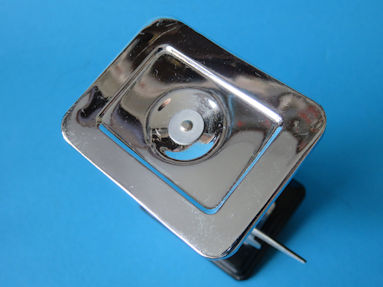

detail 7
chrome letter plate

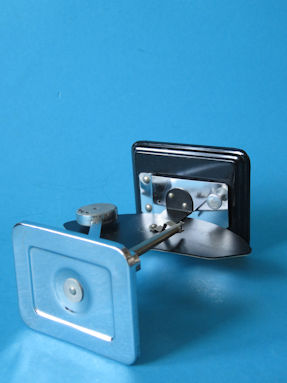

detail 8
the chrome-plated counterweight well in view

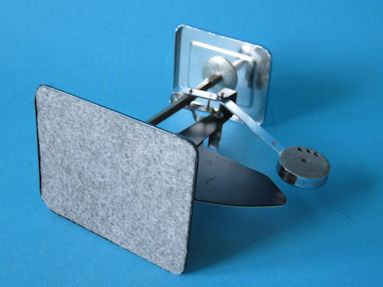

detail 9
the bottom is covered by me
