NARCISSE BRIAIS
letter balance

maker: Narcisse Briais, Paris, France
bruine lijn

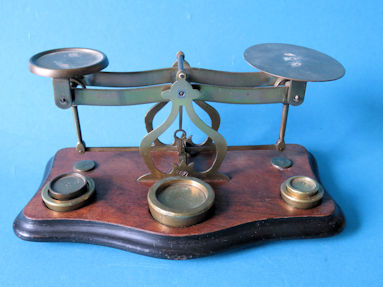

letter balance, maker Briais
Narcisse Briais letter balance


This letter balance bears the initials N.B. of Narcisse Briais. These initials were also used as a logo by his successors, see for more information about this here. The balance has a few special features: the pressed steel main bearing bush is square and the platform supports have a closed circle. In many other balances it is a semicircle. The wooden base has four small cylindrical feet. The red felt bedding in the recesses for the weights appears to be a later addition or replacement.
The dimensions of the base are 21.5 x 11.7 centimeters. The weight platform is 5.0 cm round. The oval letter tray measures 8.5 x 6.4 cm. The letter plateau height is 10.0 cm.
The basis of this balance has the same shape as with this Briais, but the type of wood is different and the edge is not black. There are a remarkable number of different versions of Briais balance models.
Below are some more images of this Briais letter balance.

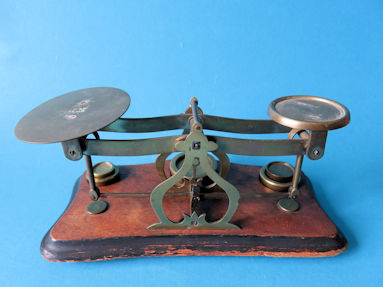

back of the letter balance
back of the letter balance

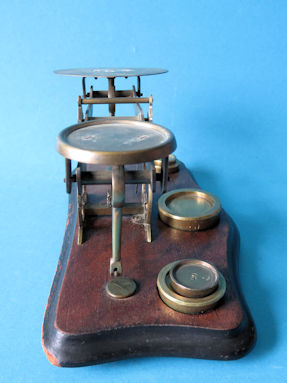

side view
side view

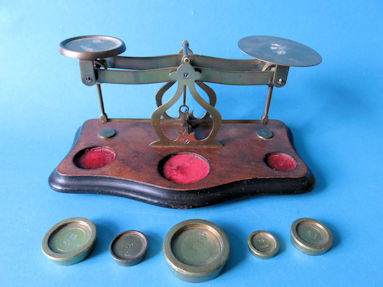

place all weights in the recesses
animation: place all weights in the recesses
[move the pointer over the photo]

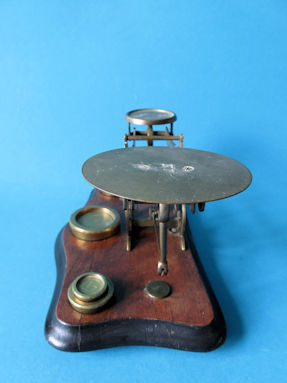

side view
side view



detail 1

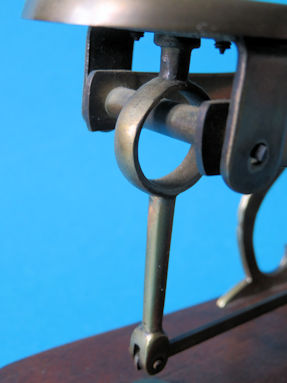

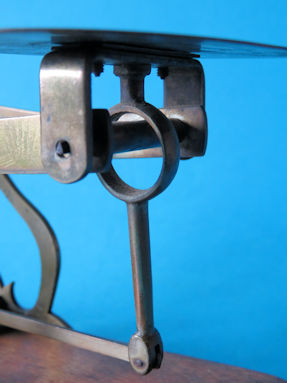

the platform support with closed circle

detail 2

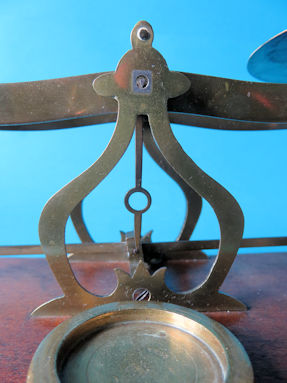

a vertical pointer means equilibrium

detail 3
the platform support with closed circle

detail 4

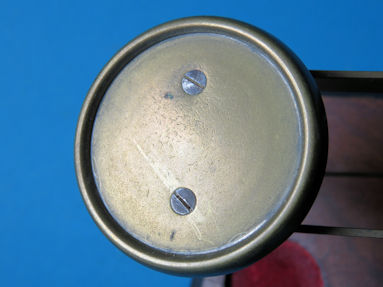

the platform for the weights

detail 5
the square shape of the pressed steel bearing bush

detail 6
the NB logo of Narcisse Briais in the letter platform

detail 7

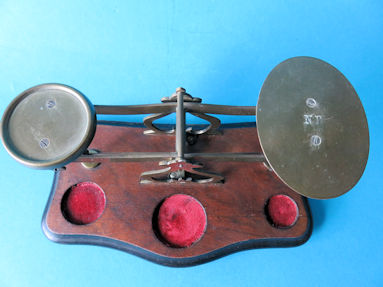

from above

detail 8

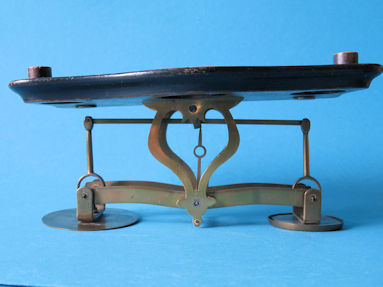

upside down

detail 9
from below

detail 10

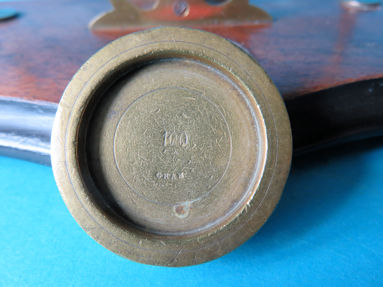

100 grams

detail 11

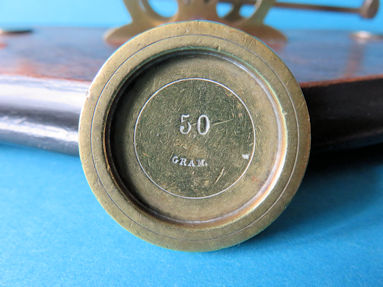

50 grams

detail 12

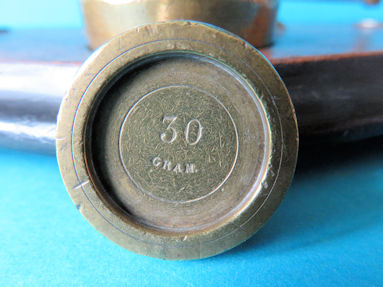

30 grams

detail 13

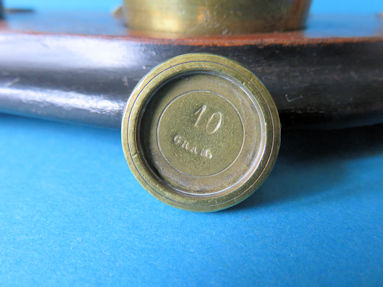

10 grams

detail 14

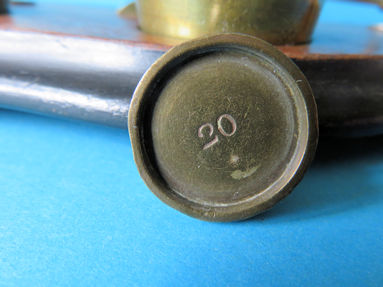

20 grams from another balance
