bilateral
letter scale

maker: unknown bruine lijn

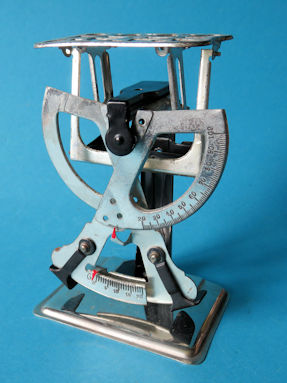

bilateral letter scale

There is no brand or logo on this chrome-plated bilateral letter scale. The model has previously been shown with slightly higher weighing ranges, see this eight ounce version here and this two hundred and fifty grams version here. Characteristic features include the slider on the back of the upright to secure the main axis, the stiffening ribs on the upright, the shape of the scale base, and the geometry of the counterweights. The pattern of the letter platform does not correspond to the models mentioned, but can be found on other tin bilateral letter scales, for example on this one scale. The scale is next to one at the bottom of the page version with a larger weighing range of 250 grams, similarities and differences can be seen.
The dimensions of the scale base are 10.2 x 6.8 centimeters, the scale height is 15.0 cm. The letter plate measures 8.6 x 6.4 cm.
Below are some more images of this letter scale.

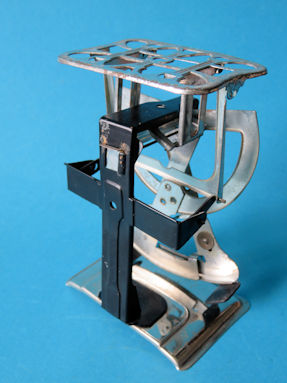

back of the letter scale

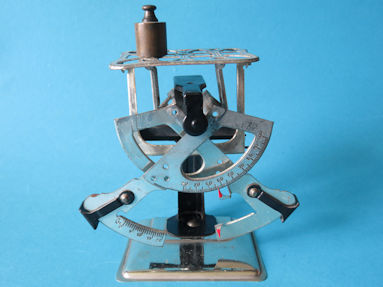

animation: put 50 grams on the scale
[move the pointer over the photo]

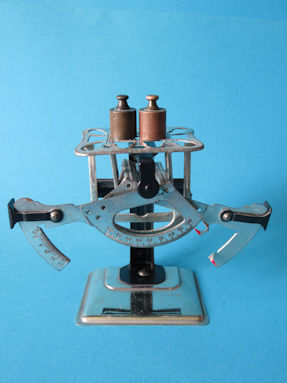

animation: add 50 grams, the total becomes 100 grams
[move the pointer over the photo]

animation: remove the weights from the scale
[move the pointer over the photo]

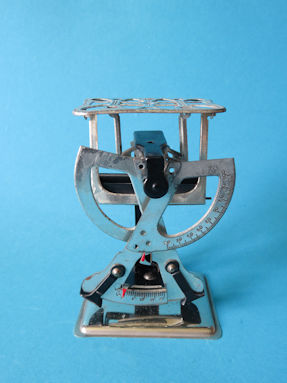

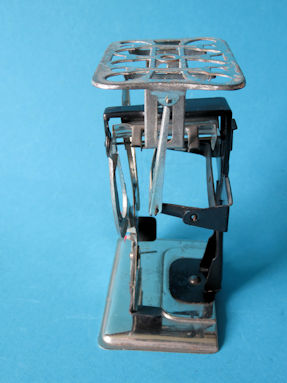

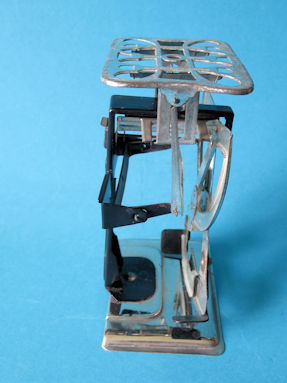

side view	from the front	side view

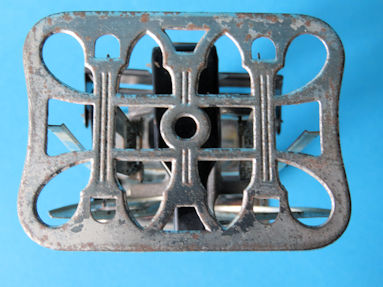

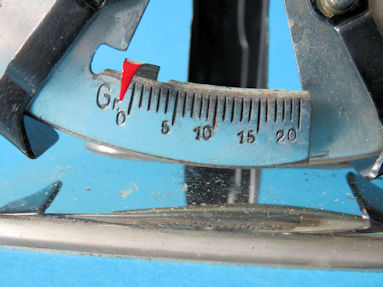

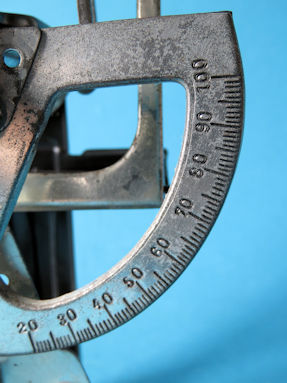

the lower scale from zero to twenty grams	the upper scale from 20 to 100 grams	the tin letter plate

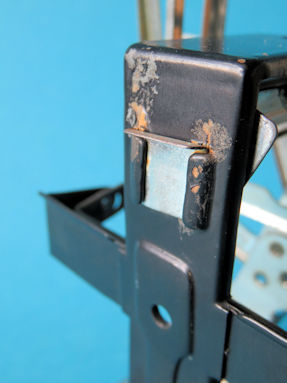

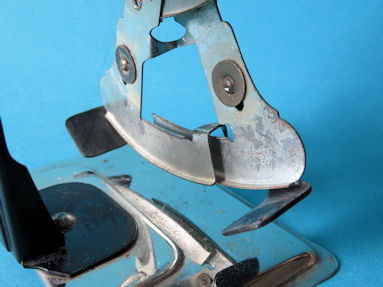

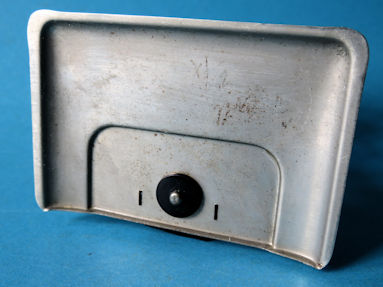

look at the tin parts	this square plate secures the main axis	the bottom of the letter scale

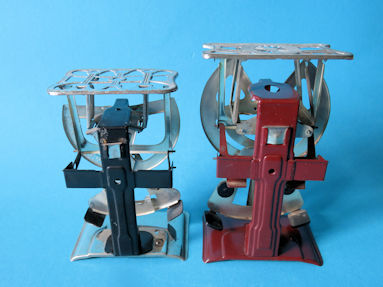

this 100 gram scale next to a 250 gram version shows differences in the bilateral scale arms, pointers and the upright top surface	equal geometry of a large part of the upright
equal geometry of the base	different geometry of the letter plate

« collection part 27 «

version: August 16, 2024
