SALTER
No. 11
letter scale

maker: George Salter & Co. Ltd., West Bromwich, Staffordshire, England
bruine lijn
letter scale, maker Salter

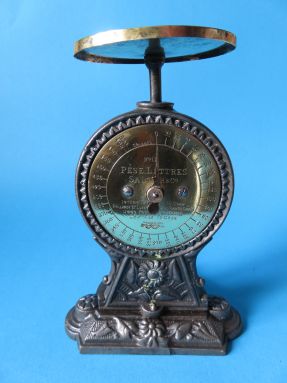

Salter no.11 letter scale


This Salter no. 11 letter scale was intended for the French-speaking Belgians. PÈSE LETTRES is French, meaning: letter scale. On the lower half of the dial is the Begian postal rate for letters:
                                                Interieur 10 c par 15 Gram
                                                Hollande et Luxembourg 20 c par 15 Gram
                                                Union postale universelle
                                                25 c par 15 Gram.
Based on old Belgian postal rates this letter scale dates from the very short period May 1, 1875 - June 19 1876. More detailed information was presented in an article in Equilibrium 2008, No.2, pp. 3367-3368 written by me, André Sol: The Dating of a Particular Salter Letter Scale. Below on the dial is the characteristic logo of Salter. The scale house is made of cast iron. The brass dial shows stripes of measure per 15 grammes and one at 500 grammes.
Previously, other Salter No. 11 letter scales were shown, see this Dutry Colson or this No. 11 for further information and other links.
Below are more pictures of this old letter scale intended for use in French-speaking Belgium.

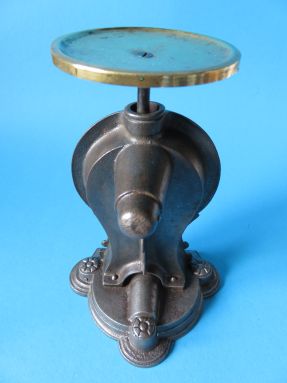

back of the scale
back of the scale

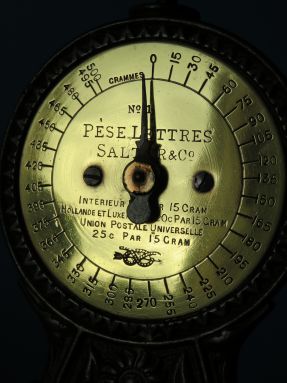

detail 1
stripes of measure per 15 grammes
and one stripe at 500 grammes

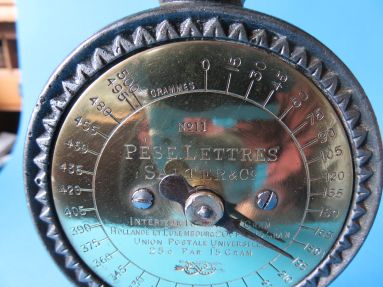

detail 2
the brass dial with the Salter logo at the bottom

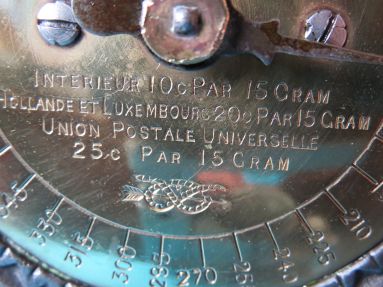

detail 3
Belgian postal rates for letters inland, to Holland and Luxembourg,
and to the other participating countries of the Universal Postal Union

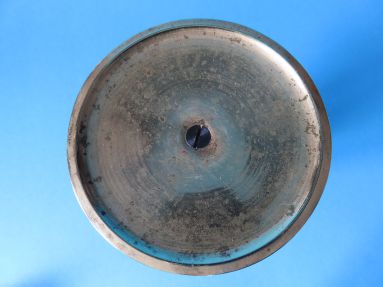

detail 4
the brass plate for the letters

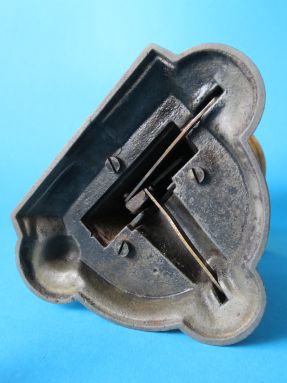

detail 5
the open bottom of the scale

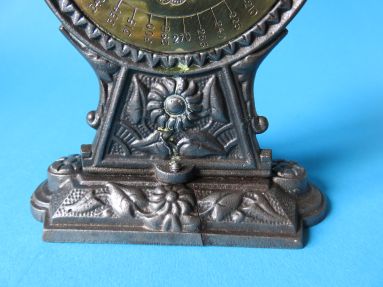

detail 6
at the bottom edge right from the middle a break line
is visible in the cast iron housing
