WMF
letter scale
No. 525

maker: Württembergische Metallwarenfabrik, Gieslingen/Steige, Germany
bruine lijn
letter scale, maker WMF
WMF letter scale No. 525


Again a letter scale from the Württembergische Metallwarenfabrik from Gieslingen/Steige in Germany. The scale base is marked at the bottom. In the middle is the number 525. In a catalog from 1914 this can be found as model number 525. On one side is the marking OX, then a logo of WMF and then the marking I/O. OX means that the silver surface has been artificially darkened. The WMF logo with the beehive which at the top is not horizontally embossed and has a rhombus in which an ostrich and the capitals WMF G, dates from the period 1910-1925. The marking I/O indicates that 1 gram of silver is applied per square decimeter. Another source says that the normal amount of silver is applied per unit area, which is rather vague. The letter α (alpha) is in the inside edge. I don't know the meaning of this. At the bottom of the back of the letter scale stand, once again is the logo of WMF with the ostrich in a rhombus on a beehive.
The scale of this letter scale has Gr. as the unit of measure. The scale up to 50 grams has a stripe of measure per five grams. Only between 10 and 20 grams there is a stripe per each gram. A special feature of this model is the hinge at the bottom of the stand. The weighing mechanism can thus be set to zero. According to a page in the 1914 WMF catalog this idea was protected by a D.R.G.M. patent. Until now, I didn't find it.
There are many more letter scale models from WMF, see for example WMF letter scale, the WMF No.117 and also this WMF letter scale. They mainly differ in the execution of the scale basis. Some models have a stamp box, other models an ink set, other more extensive models an ink set, an envelope holder, ink blotter, pen holder, stamp box and a thermometer.
Below some more images of this old WMF letter scale.

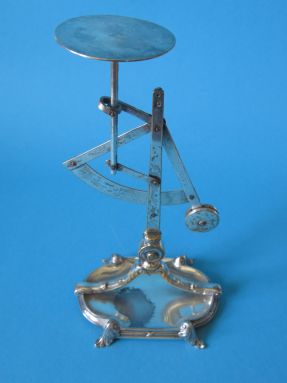

back of the scale
back of the scale

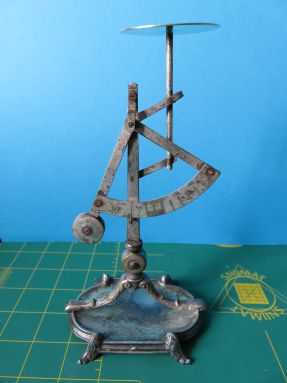

WMF letter scale
the not yet cleaned WMF letter scale


catalog image
image from 1914 WMF catalog

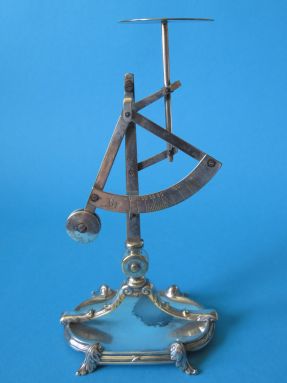

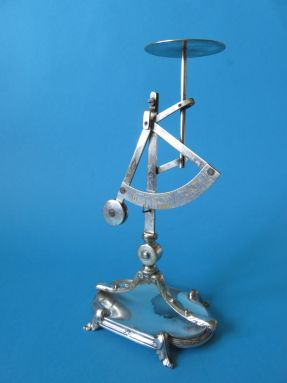

WMF letter scale
the cleaned WMF letter scale

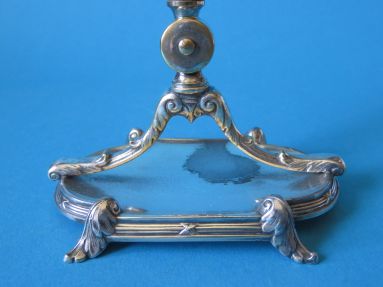

detail 1
the elegant WMF scale base

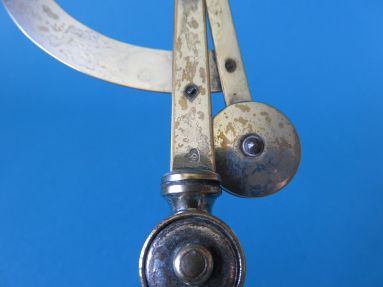

detail 2
the round hinge enables leveling the letter scale

detail 3
the number 525 is cast on the bottom

detail 4
in the inside edge on the bottom is the letter α

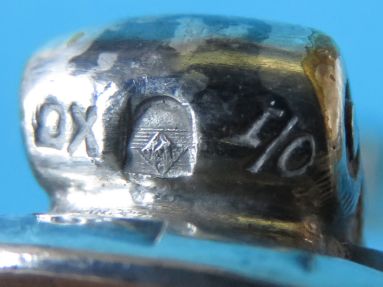

detail 5
OX with a WMF logo and the letters I/O

detail 6
WMF logo below at the back of the stand of the scale

detail scale
unit of measure Gr. and between
10g and 20g a stripe per each gram

detail 8
WMF logo below at the back of the stand of the scale


detail 9
WMF logo below at the back of
the stand of the scale
