"JIFFY-WAY"
egg scale

supplier: Kuhl Corporation, Flemington, New Jersey, U.S.A.
designer: Paul K. Boutiette, Manchaug, MA, U.S.A.
bruine lijn
egg scale Kuhl

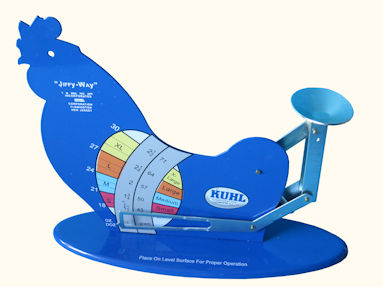

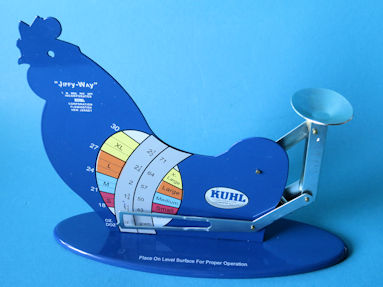

Kuhl "JIFFY-WAY" egg scale


The design of this egg scale is in the name of Paul K. Boutiette from Manchaug in Massachusetts, U.S.A.. The design is protected by an American Design Patent US D569,751S on May 27, 2008. The application dates from May 18, 2007. The term of the patent is fourteen years. The nine patent figures clearly represent the final egg scale. The brightly colored egg-shaped measuring scale indicates the egg weights per piece and per dozen in ounces. In addition, there are five weight classes Peewee, Small, Medium, Large, and Extra Large. The indication for the Jumbo weight class is missing. The measuring scale also indicates the egg weights in grams and in the European egg weight classes S, M, L and XL. The scale should be placed as horizontally as possible. The egg scale has an adjustment screw in the bottom short lever to limit the range of movement if desired and to weigh more quickly. A white chicken egg scale has been shown previously, see the white chicken, and also a red chicken, see here.
Below are more photos of the blue chicken egg scale from Kuhl.


back of the egg scale
back of the egg scale

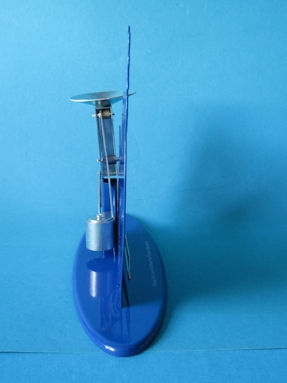

side view
side view

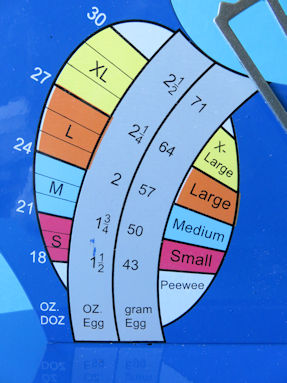

the sizes scale
the five scales or egg classes weight per egg
in grams or ounces, or per dozen eggs in ounces
or per egg in weight classes European and American

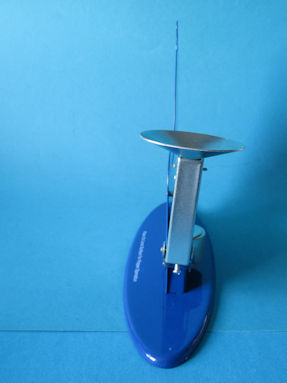

side view
side view

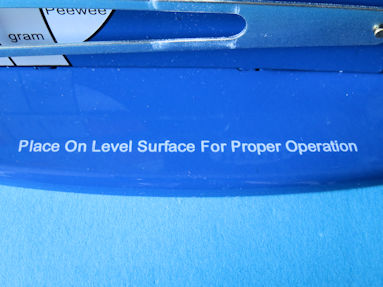

detail 1
Place On Level Surface For Proper Operation

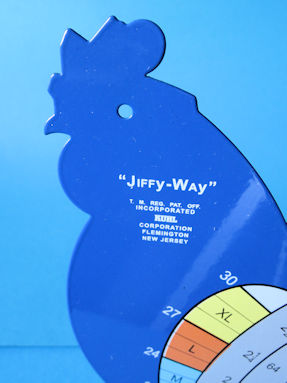

detail 2
scale model name "JIFFY-WAY" by Kuhl Corporation

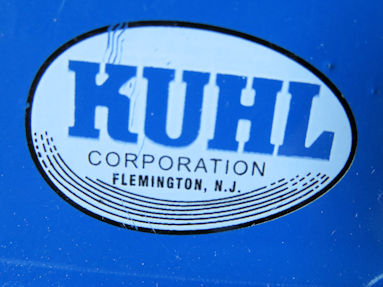

detail 3
Kuhl Corporation, Flemington, New Jersey

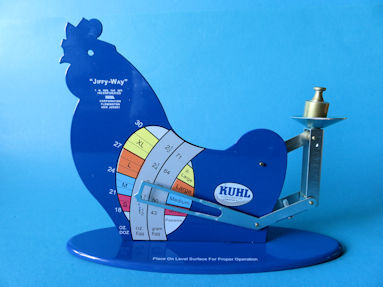

detail 4
loaded with 50 grams

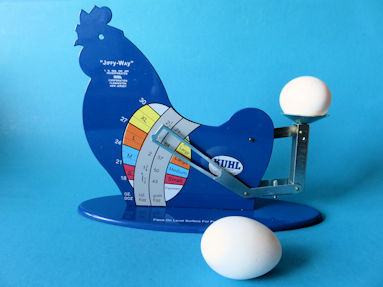

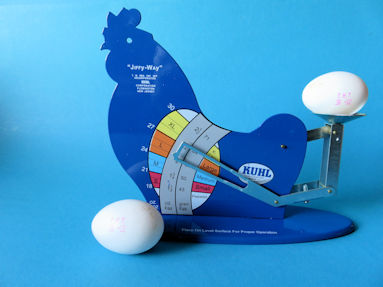

detail 5
with a class Large egg

detail 6
with a class Extra Large egg

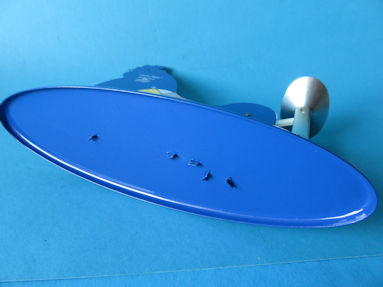

detail 7
the bottom shows the method of connecting and securing

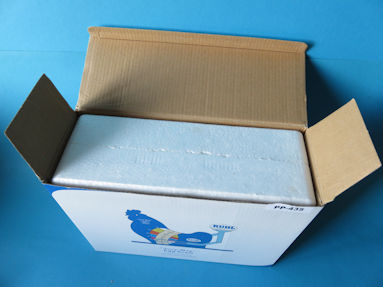

detail 8
in the solid packaging

detail 9
the Kuhl brand on the packaging

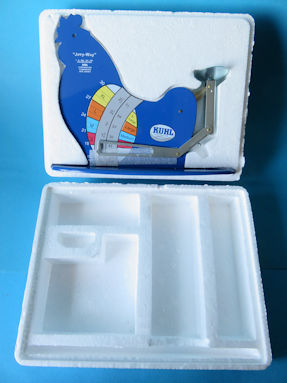

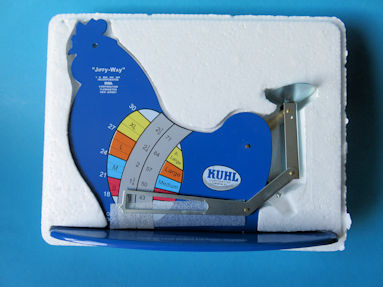

detail 10
in the solid packaging

detail 11
protected in polystyrene

detail 12
the front of the packaging

detail 13
protected in polystyrene

detail 14
the image on the packaging

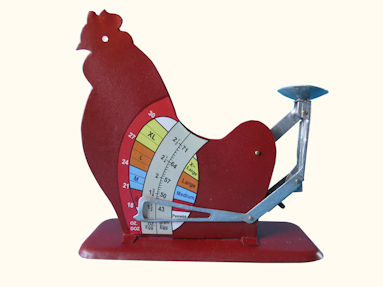

detail 16
the red chicken of an unknown maker,
is without logo and texts, comes from the U.S.A.

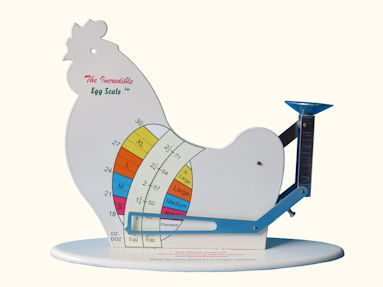

detail 17
the white chicken named The Incredible Egg Scale
of Fall Harvest Products, Manchaug, MA, U.S.A

detail 18
the blue chicken named Jiffy Way
of the Kuhl Corporation, Flemington, NJ, U.S.A.
