DUOGRAD
letter scale
Concav D.R.G.M.

maker: Philipp Jakob Maul, Hamburg, Germany
bruine lijn
letter scale, maker Ph.J. Maul

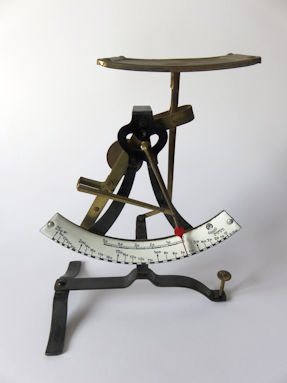

Ph.J. Maul Duograd letter scale


The enamel scale of this letter scale has the indications Duograd, concav and D.R.G.M. There are indeed two graduations on this scale, hence Duograd. The top scale from zero to fifty grams is subdivided per gram and is used when the counterweight is raised. The lower scale from zero to 250 grams is subdivided per five grams and is used when the counterweight is lowered. The enamel scale is somewhat skewed, this is concav. The designation D.R.G.M. means Deutsches Reich Gebrauchs Muster, a more readily available, cheaper design protection compared to a patent protection. At the top of the black frame is the M logo of the maker Philipp Jakob Maul from Hamburg in Germany. There are also letter scales with Monograd on the scale, see for example this Monograd, or this Aero airmail letter scale. There is also a somewhat older version of the Duograd with a cast iron base, a round letter plateau and a pointer without an extra support arm, see below. The frame of the less old Duograd is made of strip steel. The pointer does have an extra support arm and the letter plateau is rectangular. In the letter plateau the text is NIET VOOR HANDELSDOELEINDEN (= NOT LEGAL FOR TRADE).
Below some more images of this Duograd letter scale.

back of the letter scale
back of the letter scale

scale

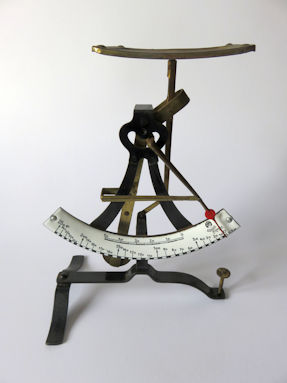

the more modern Duograd with steel strip frame
and rectangular letter plateau
and with support arm on the pointer

scale

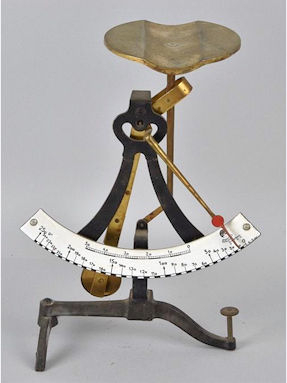

the older Duograd with a cast iron frame
and a round letter plateau
without support arm on the pointer

detail 2

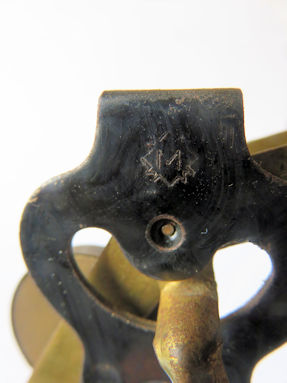

the M logo in the scale frame

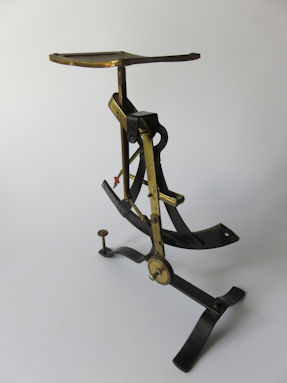

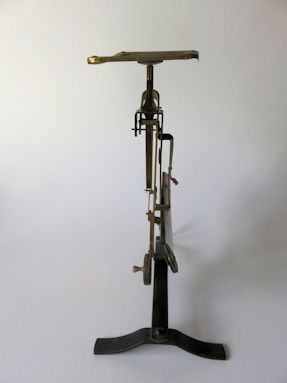

side view
side view

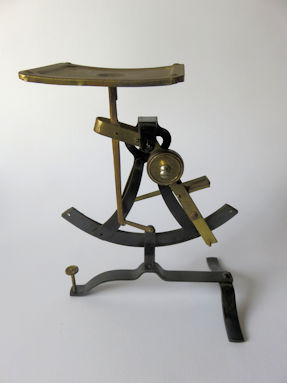

two positions of the counterweight
animation: the two counterweight positions
-in reality it is a rotational motion-
[move the pointer over the photo]

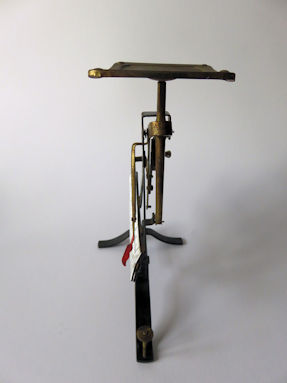

side view
side view




detail 4
divided per five grams

detail 5

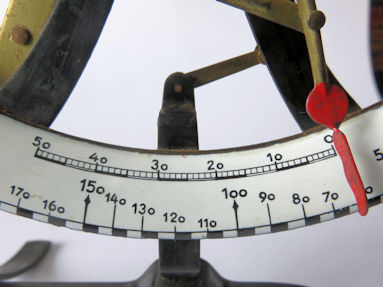

top scale is divided per gram

detail 6

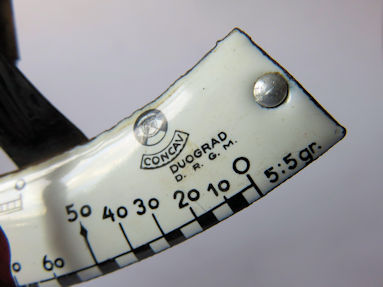

Concav Duograd D.R.G.M.

detail 7
NIET VOOR HANDELSDOELEINDEN = NOT LEGAL FOR TRADE

detail 8

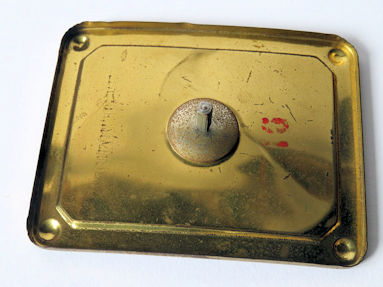

bottom letter plateau

detail 9

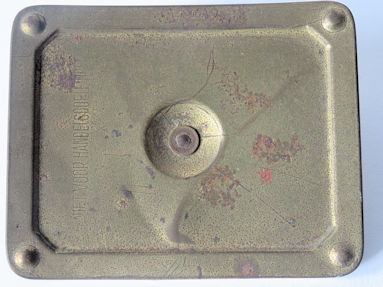

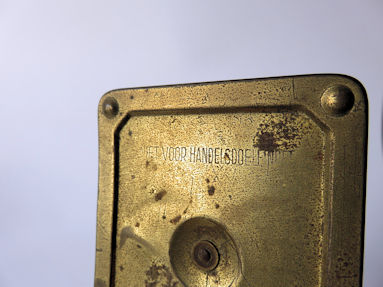

heavily corroded top of letter plateau
