ART DECO
letter scale
in olive green & chrome

maker: Jakob Maul, Germany
bruine lijn
letter scale, maker Jakob Maul

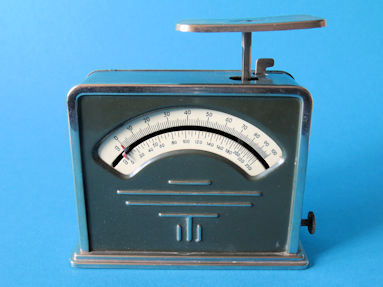

olive green Art Deco letter scale by Jakob Maul


The housing of this letter scale has a beautiful front due to the pattern of stripes and the symmetrically placed window with the chart. The back also has the beautiful striped pattern, but does not have a chrome edge. The bottom has a furniture protective layer. This letter scale fits in the Art Deco period from 1920 to 1939. This scale has a handle on the top of the housing for switching the range of weighing. As desired 100 or 250 grams. The chart of 100 grams has a stripe per each gram. The 250 grams chart is subdivided per five grams. The chart can be rotated with the knob situated at the right side of the house to adjust it to zero. This side also has the logo JM and a D.R.P. indication. The Deutsches Reich Patent with number 676942 was granted on December 25 1937. It mentions Dipl.Ing. Fritz Scharmann as the inventor. The patent was announced on May 25 1939 and was published June 15 1939. These scales were made by the company Jakob Maul, from Zell in Germany.
The base plate is 13.7 x 5.3 cm, the letter plate is 13.5 cm high and measures 7.2 x 5.7 cm. The scale housing is 12.5 cm wide and 4.2 cm deep.

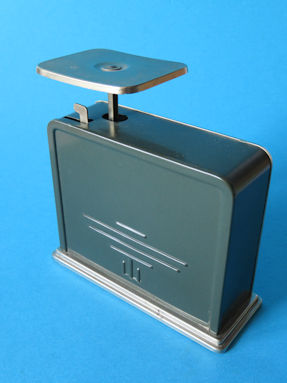

back of the letter scale
back of the letter scale

patent-figures 1
figures from the German patent with number 676942

patent-figures 2
figures from the German patent with number 676942


At the bottom of this page are the different colored versions: black, red, olive green and dark brown. There are also copies in gray hammered finish. The dark brown version was shown on an earlier page. The red version can be found on this page. The black version is shown on a separate pagehere.
Below are some more images of this beautiful Art Deco letter scale.

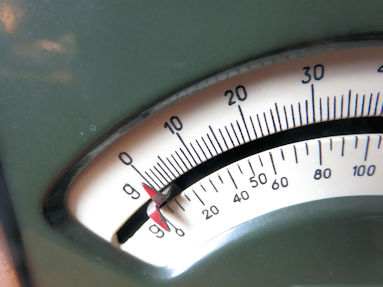

detail 1
the double pointer


detail 2
symmetrically placed decorative stripes below the
symmetrically placed measurements window

detail 3
two weighing ranges: 100 grams and 250 grams

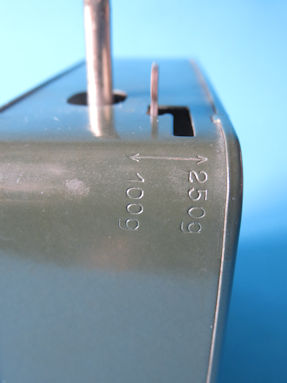

scale detail
the shift lever to set 100g or 250g range

scale bottom
bottom of the scale with a furniture protection layer on cardboard

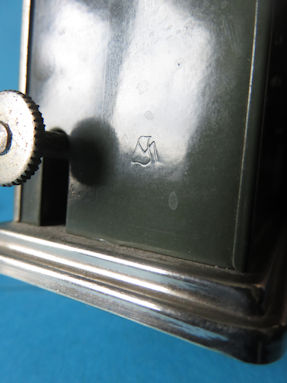

scale detail
the JM logo of Jakob Maul

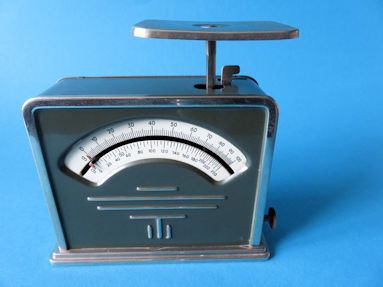

the olive green version
the olive green version

the red version
the red version

the black version
the black version

the dark brown version
the dark brown version

the olive green version
again the olive green version

black and olive green
the black and the olive green Art Deco letter scale
