letter scale, unknown maker
letter scale up to 500 grams


The maker of this stately chrome letter scale mounted on a beautifully cut glass plate is unknown to me. I guess this scale comes from Germany, but it could also be England. A brass version of this scale model, together with a stamp humidifier and stamp box mounted on a black glass plate, has been shown before, see here and bottom right of this page. That copy has the ROWENTA brand name on the bottom of the back. Presumably the Rowenta letter scales were purchased elsewhere and provided with the brand name ROWENTA [name taken from RObert WEiNTrAud]. There is only one own design letter scale known from Weintraud and patented, see this one Weintraud.
The mechanism has a rack and pinion that moves a gear or pinion on the pointer axis. The mechanism has two tension springs. The pointer can be set to zero with the rotary knob on the left side, turning the knob tightens the left tension spring more or less and thus changes the position of the parallelogram mechanism and the gear rack attached to it, which in turn changes the position of the pinion, thus the position of the pointer changes slightly. The dial has a stripe for every five grams. The weighing range is 500 grams, indicated here in German with GRAMM. After a long search I found an image of this model in an advertisement in a newspaper from the Netherlands Indies, namely in De Sumatra Post of September 26, 1927, see bottom of this page. That specimen weighs up to 16 ounces (= 453.6 grams).
The letter scale was disassembled, cleaned, dedusted and the rust was removed, and reassembled. The letter scale is visibly refurbished, the chrome is shining again. The glass plate is 10.3 x 5.7 centimeters, the scale housing measures 7.4 x 3.4 x 10.0 cm, the scale is 15.0 cm high. The diameter of the letter tray is 6.6 cm. Below are some more images of this rare letter scale.

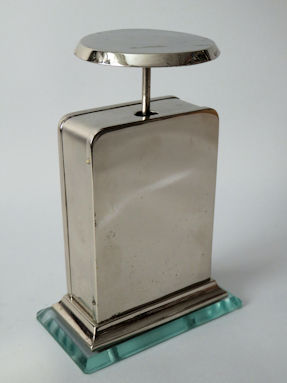

back of the scale
back of the scale

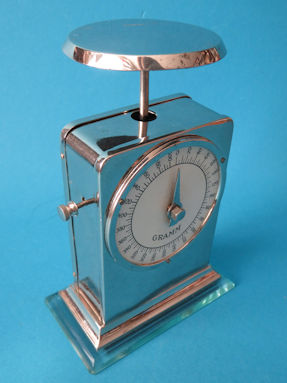

scale

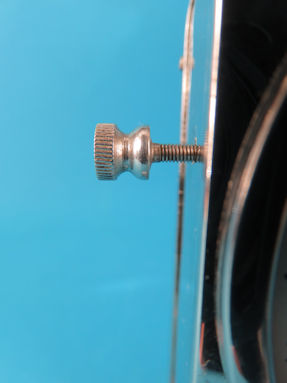

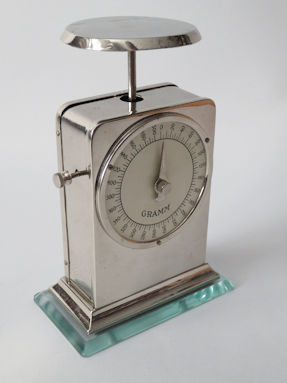

on the side is the rotary knob for the zero adjustment

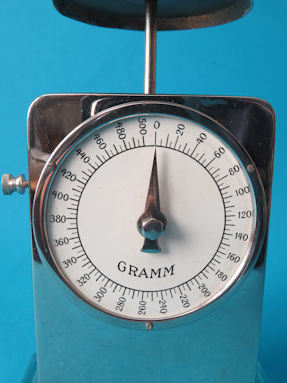

the dial

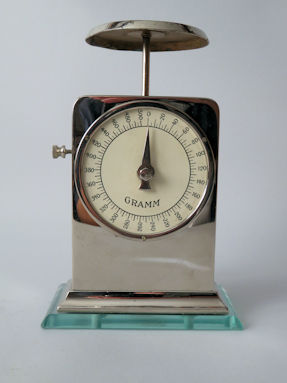

clear dial per five grams to 500 grams


scale

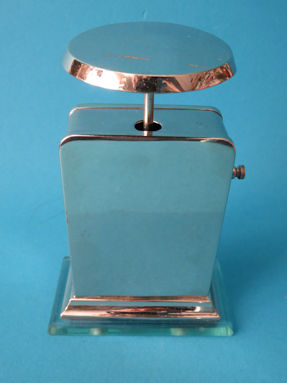

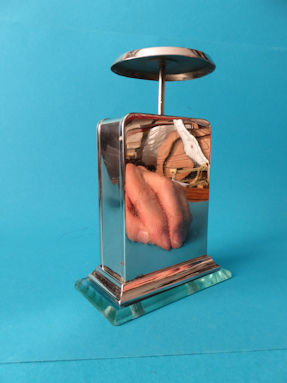

the mirror-like back of the scale housing



detail 1

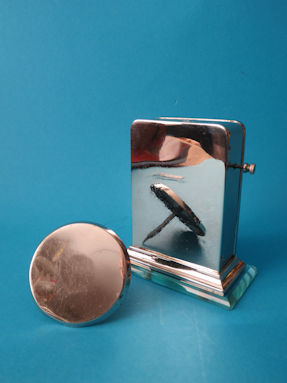

the letter tray detached from the scale

detail 2
the scale is mounted on the glass plate with two bolts and nuts

detail 3
this rotary knob adjusts the left tension spring

detail 22
nice and shiny again after refurbishing


the scale
animation: the mirror-like back
[move the pointer over the photo]

detail 23
shiny chrome


detail 4

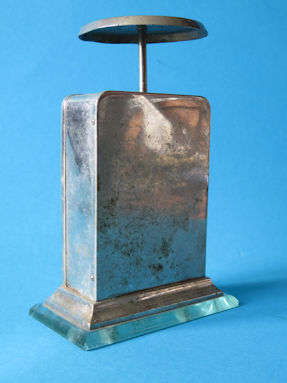

the still dirty letter scale

detail 5
the rusted and dirty interior

detail 6

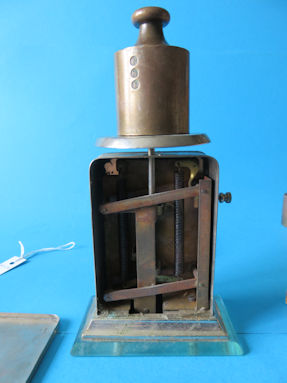

position of the parallelogram at a load of 500 grams

detail 7

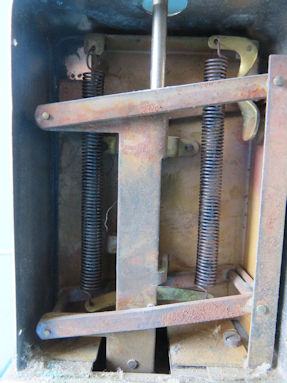

dust and rust

detail 8

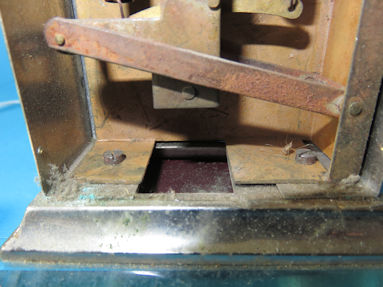

the bottom has a recess for the vertically moving rack

detail 9
the rack protrudes through the recess

detail 10

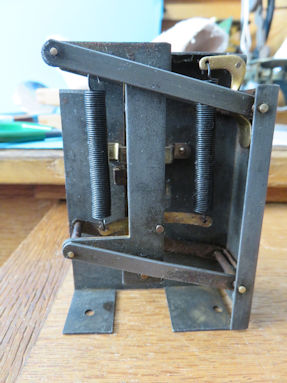

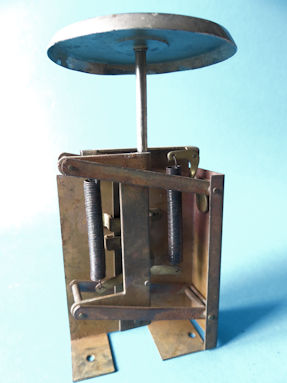

the mechanism disassembled from the housing

detail 11
the rack and pinion = the gear on the shaft with the pointer

detail 12
front with the protruding pointer shaft

detail 13
the scale mechanism derusted with WD-40

detail 14

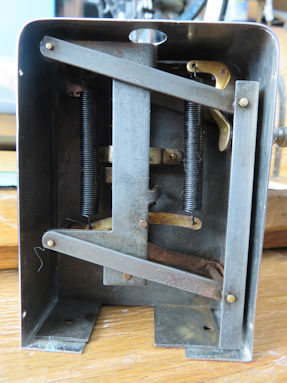

the scale mechanism back in the scale housing

detail 15
the zero adjustment knob positions the mechanism

detail 16

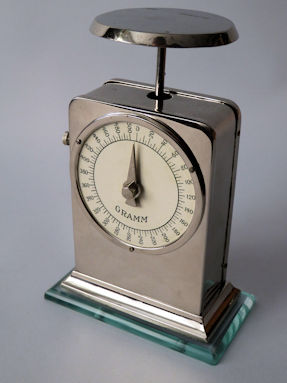

the cleaned letter scale

detail 17
the dial

detail 18

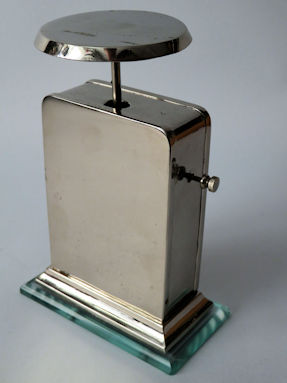

the back also shines again

detail 19
this version weighs up to 500 GRAMM




detail 20
an advertisement part from De Sumatra Post
of September 26, 1927 shows
a 16 ounces version of this scale model


detail 21
the previously shown brass Rowenta letter scale
is with stamp humidifier and stamp box
mounted on a black glass plate
