BAKELITE
letter scale

maker: unknown, Germany
bruine lijn

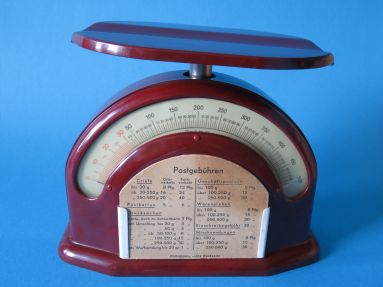

letter scale, unknown maker
bakelite letter scale, Germany 1933-1939


This bakelite letter scale comes from Germany, it has no brand or maker's name. However, there are markings on the bottom of the letter plate and on the inside of the scale housing. In the MPBD molding mark is a code to identify the factory where the product was molded, and an identifying code for the molding material used. This "MPBD" molding mark contains the stylized initials M and P, they stand for Material and Prüfung (German for material and rtesting or research). The mark also contains the stylized capitals B and D, they stand for Berlin and Dahlem. The German MaterialPrüfungs Institute was located in the Dahlem district of Berlin. This coding system to identify maker and material was introduced in 1924 by the German MaterialPrüfungsamt zu Berlin-Dahlem, it was used until 1960. In 1988 a similar code system was introduced internationally, the Resin Identification Code (Source: Molding Marks). On this website you find extensive lists with the meaning of the codes. 45 is Presswerk-AG from Essen. The capital S means Phenolharz mit Holzmehl als Füllstoff, translated Bakelite with sawdust filling. PAG in a circle is the own logo of Presswerk AG from Essen and is also on the bakelite parts.
I do not know which firm sold this letter scale. It is easy to turn around the postal

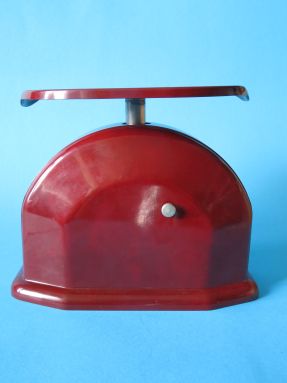

back of the scale
back of the letter scale


rates card and change it at rate changes. The information where a new postal rate card had to be purchased is missing. The German postal rates on the card photographed here were valid in the period from December 1, 1933 to May 1, 1939.
This model is more familiar in the implementation as kitchen scales, the Back-Waage of Dr. Oetker. The Dr. Oetker Company has released other scale models, see for example this Oetker kitchen scale, also of bakelite, and this the much more modern plastic Dr. Oetker Backwaage. There are more. Bakelite was also used elsewhere in scales, see for example this letter scale with a bakelite letter plate, this Testut letter scale, this Lightning egg grader, andn this egg scale of Guerin-Brimac.
Below some more pictures of this special letter scale of bakelite.

scale
the card with the postal rates
placed in the slots of the holder

the slots for the rates card
with an empty postal rate card holder


scale
the postal rates card placed
in front of the holder

detail 14

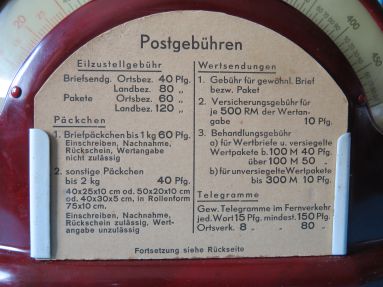

front of the postal rate card valid from 12-01-1933 to 05-01-1939

detail 15
back of the postal rate card

detail 1
side view left

detail 2
three cover plates on the bottom

detail 3
side view right

detail 4
subdivided per gram up to 30 grams

detail 5
above 30 grams a subdivision per five grams

detail 6
the weighing range is 500 grams

detail 7
subdivided per gram up to 30 grams

detail 8
the weighing mechanism with two springs

detail 9
the mechanism placed next to the scale housing

detail 10
molding marks on the bottom of the letter plate

detail 11
marking PAG - part no. 1447 - mark 45S

detail 12
molding marks on the inside of the scale house

detail 13
markings 45S and PAG
